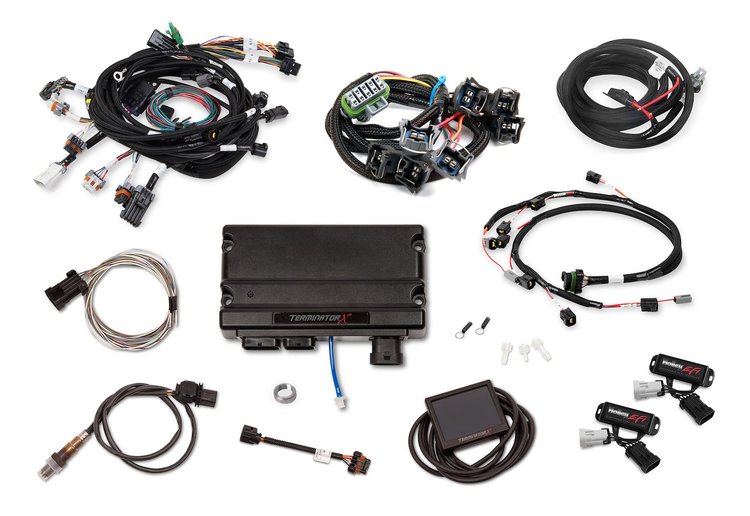

550-1216 Terminator X MPFI Controller Kit

Name: 550-1216 Terminator X MPFI Controller Kit
Brand: HOLLEY
SKU: 510-550-1216
Price: 1741.95 USD
Availability: OutOfStock

^$1,741⁹⁵$2049.95You Save$308.00

2 left in stock

Lowest Price Guarantee

Ford
Modular

Terminator X MPFI Controller Kit

Ford Modular 4.6L, 5.4L 2-Valve with Stock Ignition Coils

EV1 Injector Harness

Tune Using Included 3.500 in. Handheld Touchscreen

Take Control of Ford Engine Swaps with Holley Terminator X!

Features:

Simple Plug-and-Play - Engine controller for Ford Modular engines
Compact Design - 7.450 in. x 4.100 in. x 1.660 in. ECU can be mounted virtually anywhere
LCD 3-1/2 inch touchscreen - Provides easy base tuning with the calibration wizard along with gauge displays and data logging
Real-Time Self-Learning - Fuel maps require no complicated tuning knowledge (Holley EFI software suite is included for advanced users with laptops)
On-board Multi-Color LED Diagnostic - Allows quick troubleshooting on critical issues for ECU Power, engine running, wideband status, TPS calibration, crank signal, cam signal
Built-in 1bar MAP Sensor - 1/8, 1/4, & 3/16 in. Vacuum hose adapters included. For boosted applications, the internal sensor can be disabled to run an external MAP sensor (not included) with terminated harness and connector (included)
4 Inputs - 12-volt, ground, 5-volt, and frequency can be used for activation triggers, trans brake, and to add extra pressure sensors
4 Outputs - Ground and PWM can be used for electric fans, boost control, nitrous control, idle air control kit, and many more accessories
Boost Controls - Ability to control boost vs time, boost vs. gear, boost vs. RPM, boost vs. speed, boost vs. safeties
Nitrous Controls - Single Channel Wet or Dry, Progressive or Non-Progressive, rich/lean safeties, and target closed-loop AFR
Advance Tables - 4x 1D table, 1x 1D gear table, 4x 2D table, 1x 2D per gear table. Can be used for custom tables with unlimited configurations
Bosch LSU 4.9 Wideband - for precision reading and tuning control
High Impedance Injector Driver - powers most stock and Holley EFI injectors. (Use of low impedance injectors will damage the ECU)

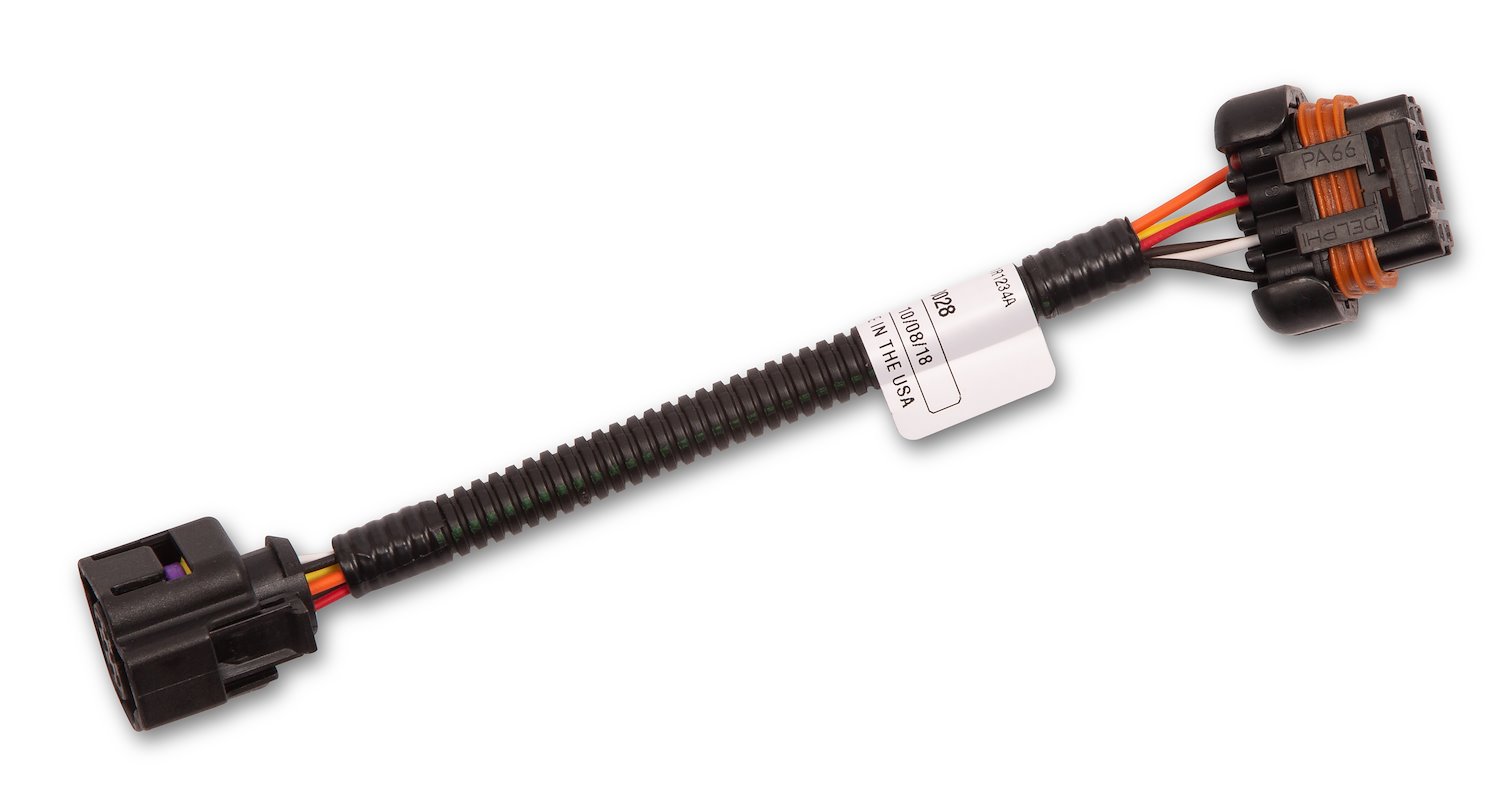

Injector Harness Adapter - EV1 Injector harness included
Holley EFI Accessories - are mostly compatible (analog-style gauges, shift lights, Dual Sync/HyperSpark Distributors and others)
Tuning Software - Free software downloads keep your system up to date

Installation Notes:

Terminator X & Terminator X Max ECU's are designed to be installed with LED lights facing upwards.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Standalone Engine Management Systems

Holley EFI has delivered the Terminator X and Terminator X Max standalone engine management systems (EMS) for swappers to take full control of their fuel-injected or multi-point fuel injected (MPFI) engines. Terminator X systems design is a simple plug-and-play unit incorporating self-learning technologies without needing any tuning interfaces, which is often required when using a factory power-train control module (PCM). Terminator X kits offer engine control, while Terminator X Max kits offer both engine and transmission control. Power adders such as nitrous and boost can easily be handled with custom settings and features, making these Terminator X kits ideal street and strip ECMs.

Part TypeEngine Control Module

Product LineHolley EFI Terminator X & Terminator X Max MPFI Controllers

BrandHOLLEY

Package Height9.3

Package Width12.6

Package Length14.3

Weight10.65 PG

Part CategoryPerformance Parts

QuantitySold as a kit

Part FitmentSemi Universal

Vendor Part Number550-1216

Package Qty1
