550-910 Terminator X MPFI Controller Kit

Name: 550-910 Terminator X MPFI Controller Kit
Brand: HOLLEY
SKU: 510-550-910
Price: 1358.95 USD
Availability: InStock

^$1,358⁹⁵$1599.95You Save$241.00

1 left in stock

Ships Today

Lowest Price Guarantee

GM LS

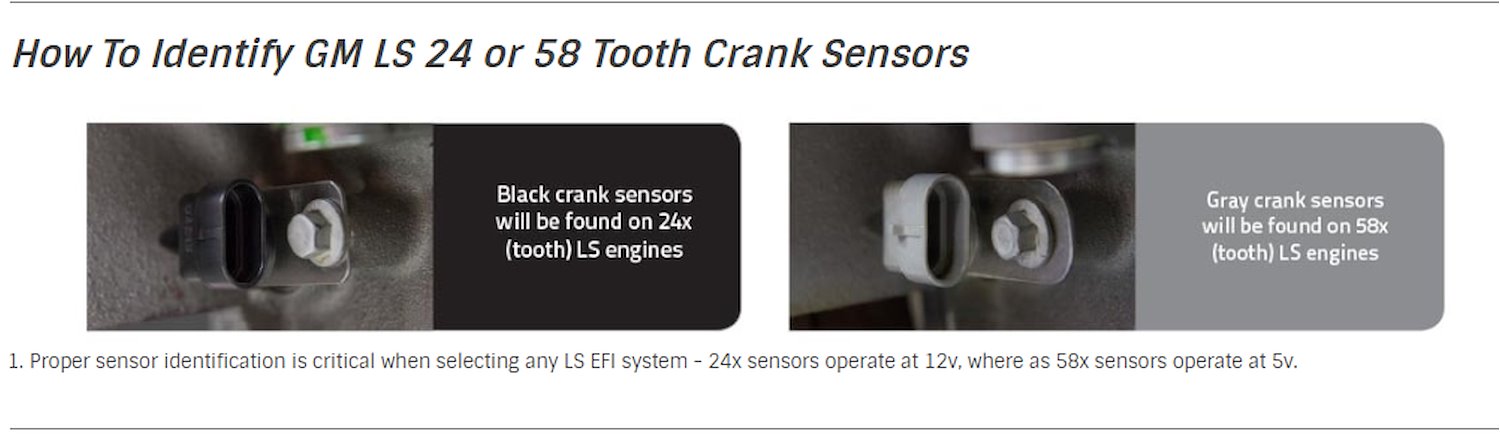

LS2/LS3/LS Truck Engine 58x Tooth Crank Reluctor

GM LS2 6.0L, LS3 6.2L, Late Truck Engine 4.8L, 5.3L, 6.0L
58x Crank Reluctor
4x Cam
EV1 Injector Harness
Tune Using Included 3.500 in. Handheld Touchscreen

Holley 550-910 Terminator X MPFI Controller Kit Features:
Simple Plug-and-Play engine controller for GM LS series engines
LCD 3 1/2 inch touchscreen provides easy base tuning with the calibration wizard along with gauge displays and data logging.
Real-Time Self-Learning fuel maps require no complicated tuning knowledge (Holley EFI software suite is included for advanced users with laptops)
On-board Multi-Color LED Diagnostic allows quick troubleshooting on critical issues for ECU Power, Engine Running, Wideband Status, TPS Calibration, Crank Signal, Cam Signal.
Built-in 1bar MAP Sensor with 1/8, 1/4, & 3/16 in. vacuum hose adapters included. For boosted applications, the internal sensor can be disabled to run an external LS style MAP sensor (not included) with terminated harness and connector (included).
4 Inputs - 12-volt, Ground, 5-volt, and Frequency can be used for activation triggers, trans brake, and to add extra pressure sensors.
4 Outputs - Ground and PWM can be used for electric fans, boost control, nitrous control, idle air control kit, and many more accessories.
Boost Controls - Ability to control boost vs time, boost vs. gear, boost vs. RPM, boost vs. speed, boost vs. safeties
Nitrous Controls - Single Channel Wet or Dry, Progressive or Non-Progressive, rich/lean safeties, and target closed-loop AFR
Advance Tables - 4x 1D Table, 1x 1D Gear Table, 4x 2D Table, 1x 2D per Gear Table. Can be used for custom tables for flex fuel sensor, fuel pressure safety, or oil pressure safety.
Bosch LSU 4.9 Wideband for precision reading and tuning control (will not function with LSU 4.2 oxygen sensors
High Impedance Injector Driver powers most GM stock LS and Holley EFI injectors. (Use of low impedance injectors will damage the ECU)
Holley EFI Accessories are mostly compatible (analog-style gauges, shift lights, and others.)

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Standalone Engine Management Systems

Holley EFI has delivered the Terminator X and Terminator X Max standalone engine management systems (EMS) for swappers to take full control of their fuel-injected or multi-point fuel injected (MPFI) engines. Terminator X systems design is a simple plug-and-play unit incorporating self-learning technologies without needing any tuning interfaces, which is often required when using a factory power-train control module (PCM). Terminator X kits offer engine control, while Terminator X Max kits offer both engine and transmission control. Power adders such as nitrous and boost can easily be handled with custom settings and features, making these Terminator X kits ideal street and strip ECMs.

Part TypeEngine Control Module

Product LineHolley EFI Terminator X & Terminator X Max MPFI Controllers

BrandHOLLEY

Package Height8.0

Package Width11.5

Package Length12.5

Weight9.39 PG

Part CategoryPerformance Parts

QuantitySold as a kit

Part FitmentSemi Universal

Package Qty1

Package TypeEA
