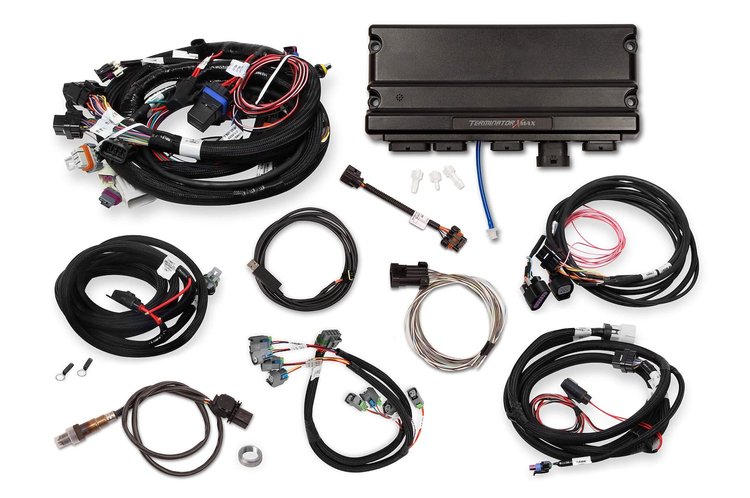

550-934T Terminator X Max MPFI Controller Kit
InfoVehicle Info Needed
HOLLEYPART NUMBER: 510-550-934T

550-934T Terminator X Max MPFI Controller Kit

$1,93395$2149.95You Save$216.00
2 left in stock
ShippingShips on Nov 23, 2026
Lowest PriceLowest Price Guarantee

Items You Need

526-1 Terminator EFI Fuel System Kit

HOLLEY

526-1 Terminator EFI Fuel System Kit

Part Number : 510-526-1
$1,30395$1449.95
You Save$146.00
526-2 Terminator EFI Fuel System Kit

HOLLEY

526-2 Terminator EFI Fuel System Kit

Part Number : 510-526-2
$1,34895$1499.95
You Save$151.00
526-4 Terminator EFI Fuel System Kit

HOLLEY

526-4 Terminator EFI Fuel System Kit

Part Number : 510-526-4
$70095$779.95
You Save$79.00
7 in. EFI Digital Dash Full-Color Touch Screen 800x480 Weatherproof

HOLLEY

7 in. EFI Digital Dash Full-Color Touch Screen 800x480 Weatherproof

Part Number : 510-553-106
$87095$967.95
You Save$97.00

GM LS
LS1/LS6 24x Tooth Reluctor
Terminator X Max MPFI Controller Kit
  • GM LS1/LS6 5.7L
  • 4L60/4L80E Trans Control
  • DBW Throttle Bodies
  • 24x Crank Reluctor
  • 1x Cam
  • EV6 Injector Harness
  • Laptop Required for Tuning with Included USB Cable

    Note: To calibrate and tune a laptop is required to run the advanced tuning software. For simple setup wizard and tuning without a laptop purchase a kit that has the included 3.500 in. handheld touchscreen.

    Take Control of LS Swaps with Terminator X MAX!

    Features:

    • Simple Plug-and-Play engine controller for GM LS engines and will also control 4L60E and 4L80E automatic transmissions.
    • CAN/BUS Tuning Cable allows tuning with the use of a laptop computer (sold separately)
    • Real-Time Self-Learning fuel maps require no complicated tuning knowledge (Holley EFI software suite is included for advanced users with laptops)
    • On-board Multi-Color LED Diagnostic allows quick troubleshooting on critical issues for ECU Power, Engine Running, Wideband Status, TPS Calibration, Crank Signal, Cam Signal.
    • Built-in 1bar MAP Sensor with 1/8, 1/4, & 3/16 in. vacuum hose adapters included. For boosted applications, the internal sensor can be disabled to run an external LS style MAP sensor (not included) with terminated harness and connector (included).
    • 4 Inputs - 12-volt, Ground, 5-volt, and Frequency can be used for activation triggers, trans brake, and to add extra pressure sensors.
    • 4 Outputs - Ground and PWM can be used for electric fans, boost control, nitrous control,  idle air control kit, and many more accessories.
    • Boost Controls - Ability to control boost vs time, boost vs. gear, boost vs. RPM, boost vs. speed, boost vs. safeties
    • Nitrous Controls - Single Channel Wet or Dry, Progressive or Non-Progressive, rich/lean safeties, and target closed-loop AFR
    • Advance Tables - 4x 1D Table, 1x 1D Gear Table, 4x 2D Table, 1x 2D per Gear Table.  Can be used for custom tables for flex fuel sensor, fuel pressure safety, or oil pressure safety.
    • Bosch LSU 4.9 Wideband for precision reading and tuning control (will not function with LSU 4.2 oxygen sensors
    • High Impedance Injector Driver powers most GM stock LS and Holley EFI injectors. (Use of low impedance injectors will damage the ECU)
    • Holley EFI Accessories are mostly compatible (analog-style gauges, shift lights, and others.)

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    • Standalone Engine Management Systems

      Holley EFI has delivered the Terminator X and Terminator X Max standalone engine management systems (EMS) for swappers to take full control of their fuel-injected or multi-point fuel injected (MPFI) engines. Terminator X systems design is a simple plug-and-play unit incorporating self-learning technologies without needing any tuning interfaces, which is often required when using a factory power-train control module (PCM). Terminator X kits offer engine control, while Terminator X Max kits offer both engine and transmission control. Power adders such as nitrous and boost can easily be handled with custom settings and features, making these Terminator X kits ideal street and strip ECMs.

    Part TypeEngine Control Module
    Product LineHolley EFI Terminator X & Terminator X Max MPFI Controllers
    BrandHOLLEY
    Package Height8.0
    Package Width11.0
    Package Length12.25
    Weight9.0 PG
    Part CategoryPerformance Parts
    Part FitmentSemi Universal
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
