550-942 Terminator X Max MPFI Controller Kit

Name: 550-942 Terminator X Max MPFI Controller Kit
Brand: HOLLEY
SKU: 510-550-942
Price: 1999.95 USD
Availability: InStock

^$1,999⁹⁵

1 left in stock

Ships Tomorrow

Lowest Price Guarantee

Universal

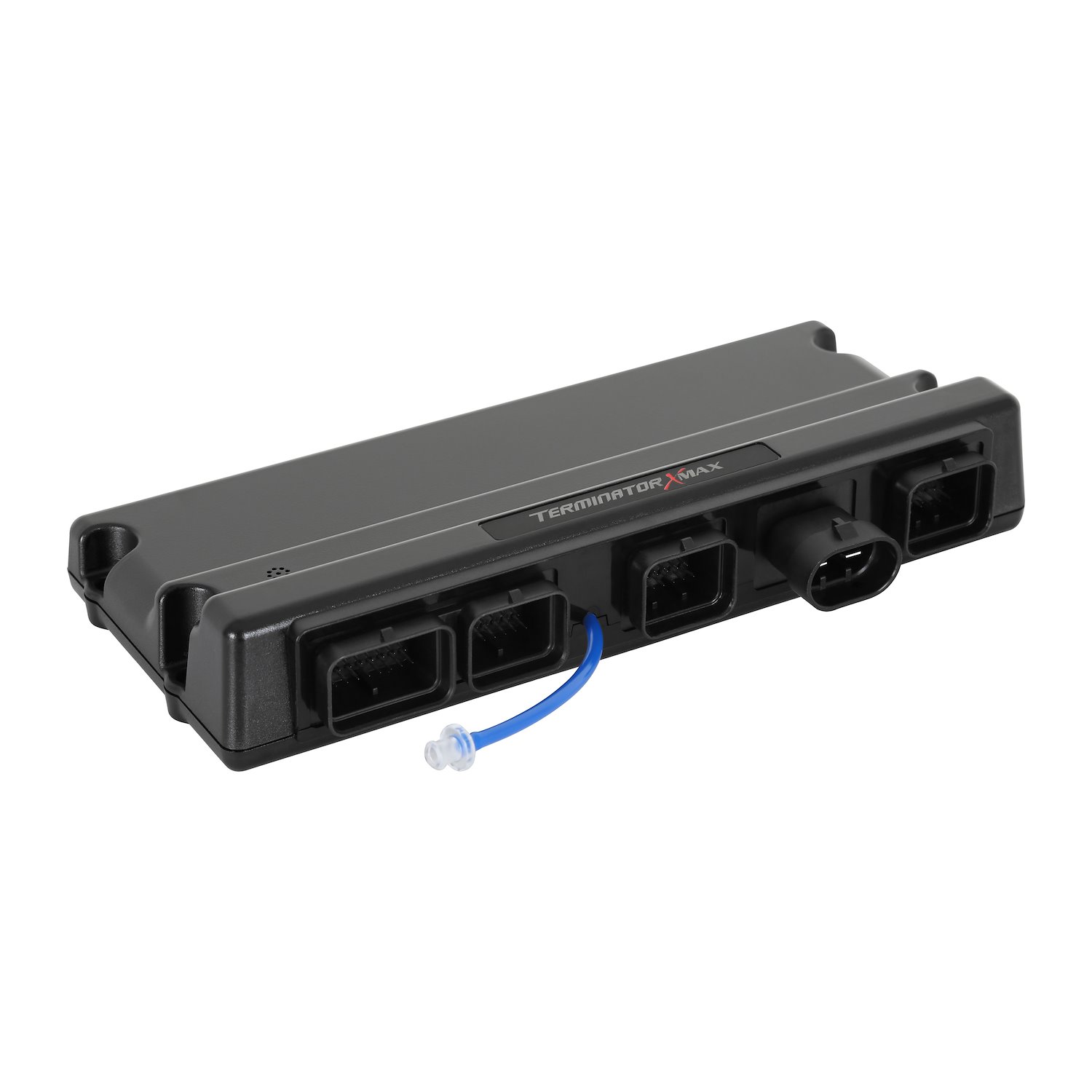

Terminator X Max MPFI Controller Kit

Universal Application USA Domestic V8

4L60E/4L80E Transmission Control

EV1 Injector Harness

Tune Using Included 3.500 in. Handheld Touchscreen

Holley 550-942 Terminator X Max MPFI Controller Kit Features:

Simple Plug-and-Play - Engine controller for domestic V8's
Transmission Control - GM 4L60E/4L80E harness included
LCD 3-1/2 inch touchscreen - Provides easy base tuning with the calibration wizard along with gauge displays and data logging
Real-Time Self-Learning - Fuel maps require no complicated tuning knowledge (Holley EFI software suite is included for advanced users with laptops)
On-board Multi-Color LED Diagnostic - Allows quick troubleshooting on critical issues for ECU Power, engine running, wideband status, TPS calibration, crank signal, cam signal
Built-in 1bar MAP Sensor - 1/8, 1/4, & 3/16 in. Vacuum hose adapters included. For boosted applications, the internal sensor can be disabled to run an external MAP sensor (not included) with terminated harness and connector (included)
4 Inputs - 12-volt, ground, 5-volt, and frequency can be used for activation triggers, trans brake, and to add extra pressure sensors
4 Outputs - Ground and PWM can be used for electric fans, boost control, nitrous control, idle air control kit, and many more accessories
Boost Controls - Ability to control boost vs time, boost vs. gear, boost vs. RPM, boost vs. speed, boost vs. safeties
Nitrous Controls - Single Channel Wet or Dry, Progressive or Non-Progressive, rich/lean safeties, and target closed-loop AFR
Advance Tables - 4x 1D table, 1x 1D gear table, 4x 2D table, 1x 2D per gear table. Can be used for custom tables for flex fuel sensor, fuel pressure safety, or oil pressure safety
Bosch LSU 4.9 Wideband - for precision reading and tuning control
High Impedance Injector Driver - powers most stock and Holley EFI injectors. (Use of low impedance injectors will damage the ECU)
Injector Harness Adapter - EV1 Injector harness included
Holley EFI Accessories - are mostly compatible (analog-style gauges, shift lights, Dual Sync/HyperSpark Distributors and others)
Tuning Software - Free software downloads keep your system up to date

Installation Notes:

Terminator X & Terminator X Max ECU's are designed to be installed with LED lights facing upwards.

To use this kit with a HyperSpark Ignition System The following harness is required:

Holley EFI HyperSpark Ignition Adapter - 510-558-323

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Standalone Engine Management Systems

Holley EFI has delivered the Terminator X and Terminator X Max standalone engine management systems (EMS) for swappers to take full control of their fuel-injected or multi-point fuel injected (MPFI) engines. Terminator X systems design is a simple plug-and-play unit incorporating self-learning technologies without needing any tuning interfaces, which is often required when using a factory power-train control module (PCM). Terminator X kits offer engine control, while Terminator X Max kits offer both engine and transmission control. Power adders such as nitrous and boost can easily be handled with custom settings and features, making these Terminator X kits ideal street and strip ECMs.

Part TypeEngine Control Module

Product LineHolley EFI Terminator X & Terminator X Max MPFI Controllers

BrandHOLLEY

Package Height9.3

Package Width12.5

Package Length14.1

Weight10.5 PG

Part CategoryPerformance Parts

QuantitySold as a kit

Part FitmentSemi Universal

Package Qty1

Package TypeEA
