• Black Sniper 2 EFI Throttle Body
• 5 in. Handheld
• Power Distribution Module
• Black Hyperspark Distributor
• HyperSpark Ignition Box
• HyperSpark Coil
• Fuel Pump Master Kit

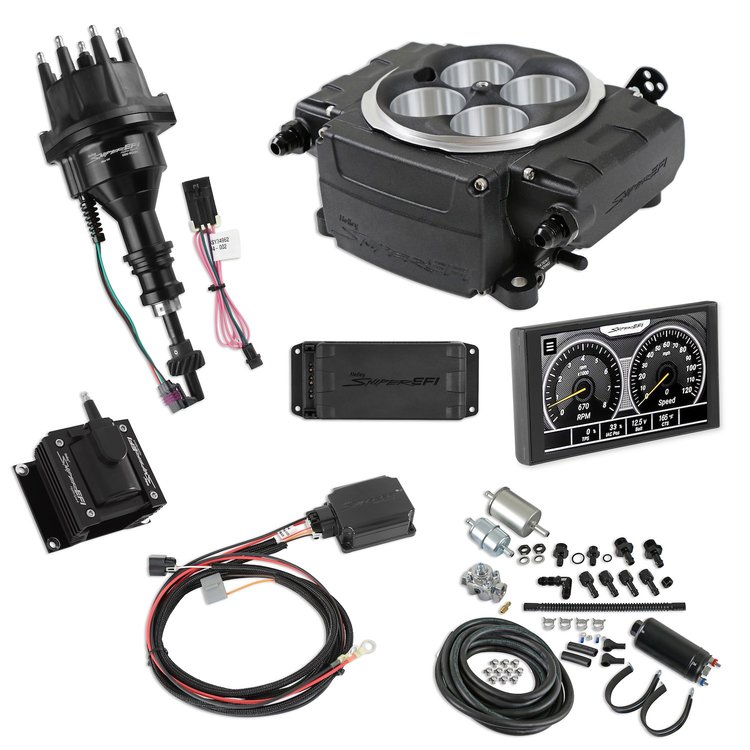

  Holley Sniper 2 EFI Bundle Includes:

• Sniper 2 EFI Throttle Body:
  • Four wire connection: Battery+, Battery-, Switched Ignition, and RPM
  • Simple calibration wizard to create a base map and begin self-tuning - No laptop required
  • Supports up to 650 horsepower naturally aspirated or 575 horsepower power adder applications
  • Integrated kick down provisions for GM TH350/400, 200-4R/700R4 and Ford C4/C6 transmissions
  • The wiring harness exits from the rear of the throttle body for a clean, "hidden" appearance
  • Inputs and outputs: (2) ground inputs, (2) ground outputs, (1) TPS output - 0-5 V, and (1) tachometer output
  • Onboard contactless magnetic TPS sensor for accurate reading
  • Next-generation ECU for improved RF noise and interference resistance for compatibility with classic car wiring, noisy alternators, or faulty plug wires

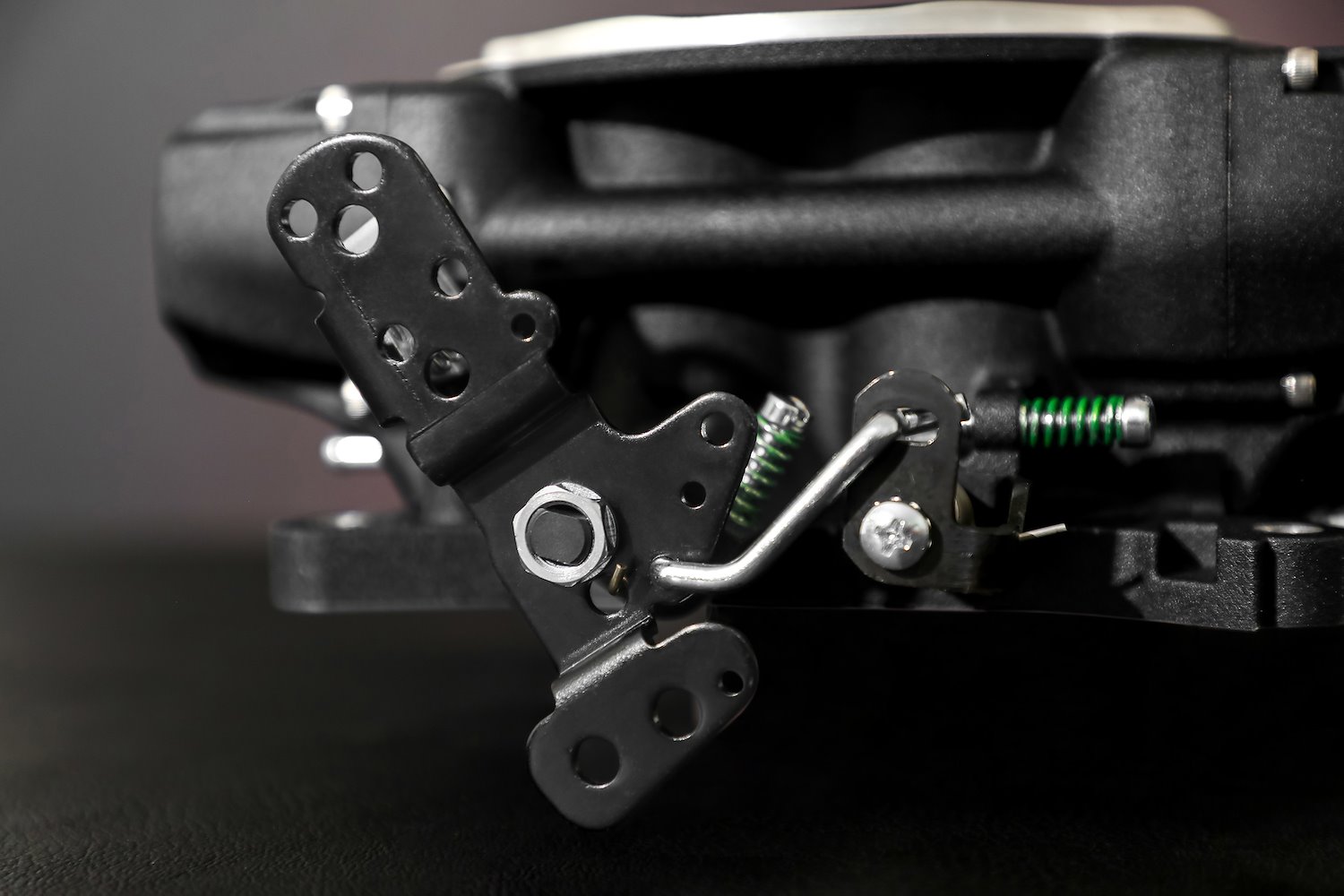

  • Redesigned throttle shaft and plate geometry for a smoother throttle feedback
  • Redesigned injector connector for improved reliability
  • CAN1 and CAN2 mil-spec-style M8 positive lock connector for the latest in CAN bus technology
  • Primary to secondary cast-in fuel rail crossover
  • Bosch LSU 4.9 wideband oxygen sensor (O2) for real-time fuel map learning
  • Clamp-on oxygen sensor kit for a leak-free oxygen sensor installation
  • Nitrous Control Not Supported In Sniper 2 EFI Software
• Sniper EFI HyperSpark Distributor:
  • Hall Effect crank trigger sensor housing delivers a noise-free RPM signal to the Sniper ECU
  • Billet distributor housing offers both corrosion resistance and stylish aesthetics
  • Clear Installation cap eliminates confusion during distributor installation
  • The easiest plug-and-play method for adding timing control to a Sniper EFI Installation
  • Distributor shutter wheel securely pinned and welded to the shaft for decades of reliable accuracy
  • Includes Wire Retainer for a neat and organized installation
  • Comes with Cast Gear Installed; consult the camshaft manufacturer for recommended gear material
• HyperSpark Ignition Coil:
  • Plug & Play compatibility with Sniper EFI
  • Ensures complete combustion
  • Pre-terminated connector to ensure constant connection
  • Integrated mounting bracket in the case allows numerous mounting options
• HyperSpark Ignition Box:
  • Processor and board design brings an efficient ignition with minimal heat and maximum spark energy while drawing less current
  • High energy capacitive discharge of multiple sparks increases performance and ensures complete combustion
  • Full protection from an open coil, shorted coil, and open load
• 5 in. Digital Dash:
  • 5 in. High-Resolution Display
  • Built-In Handheld Wizard
  • GPS Speedometer w/Antenna
  • Real-Time Tuning
  • (2) Dash Mounting Stand-Offs & Suction Cup
  • Fully Plug-and-Play
  • (3) Pre-Loaded Readouts
  • Multiple Screens
• Power Distribution Module
  • Provides conditioned Power, Ground and Switched Connections
  • 3-Relay Channels
  • LED status indicators, show you which channel is triggered at a glance
  • Removable cover for easy accessibility, with wiring diagram built into the lid
• Complete Inline Fuel System:
  • 20 Ft. Of 3/8 in. Vapor Guard Fuel Hose
  • Fuel Pump
  • Fuel Pressure Regulator
  • Filters
  • Hardware
  • Bulkhead Fitting to Return Fuel to the Tank

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
