Vehicle Info NeededHOLLEYPART NUMBER: 510-712-815-1

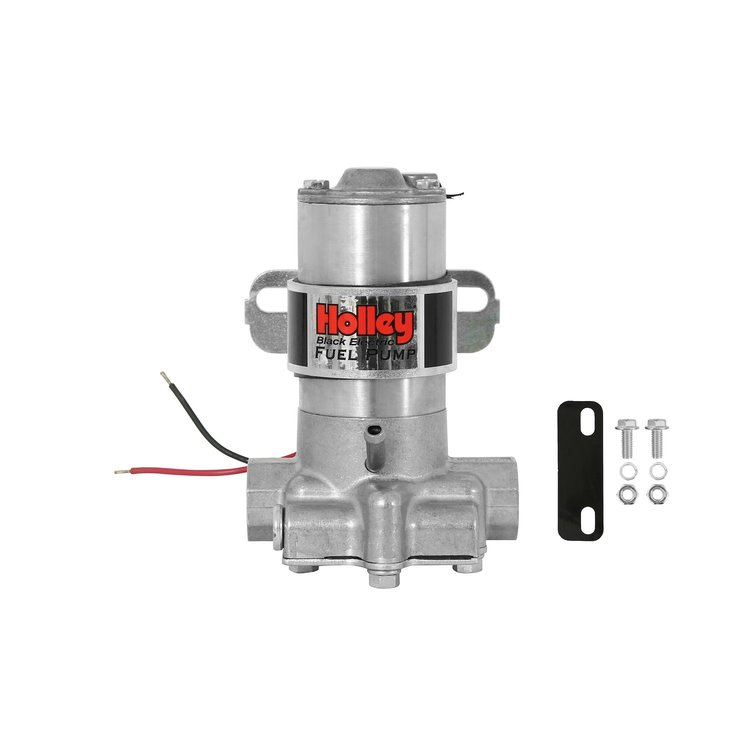

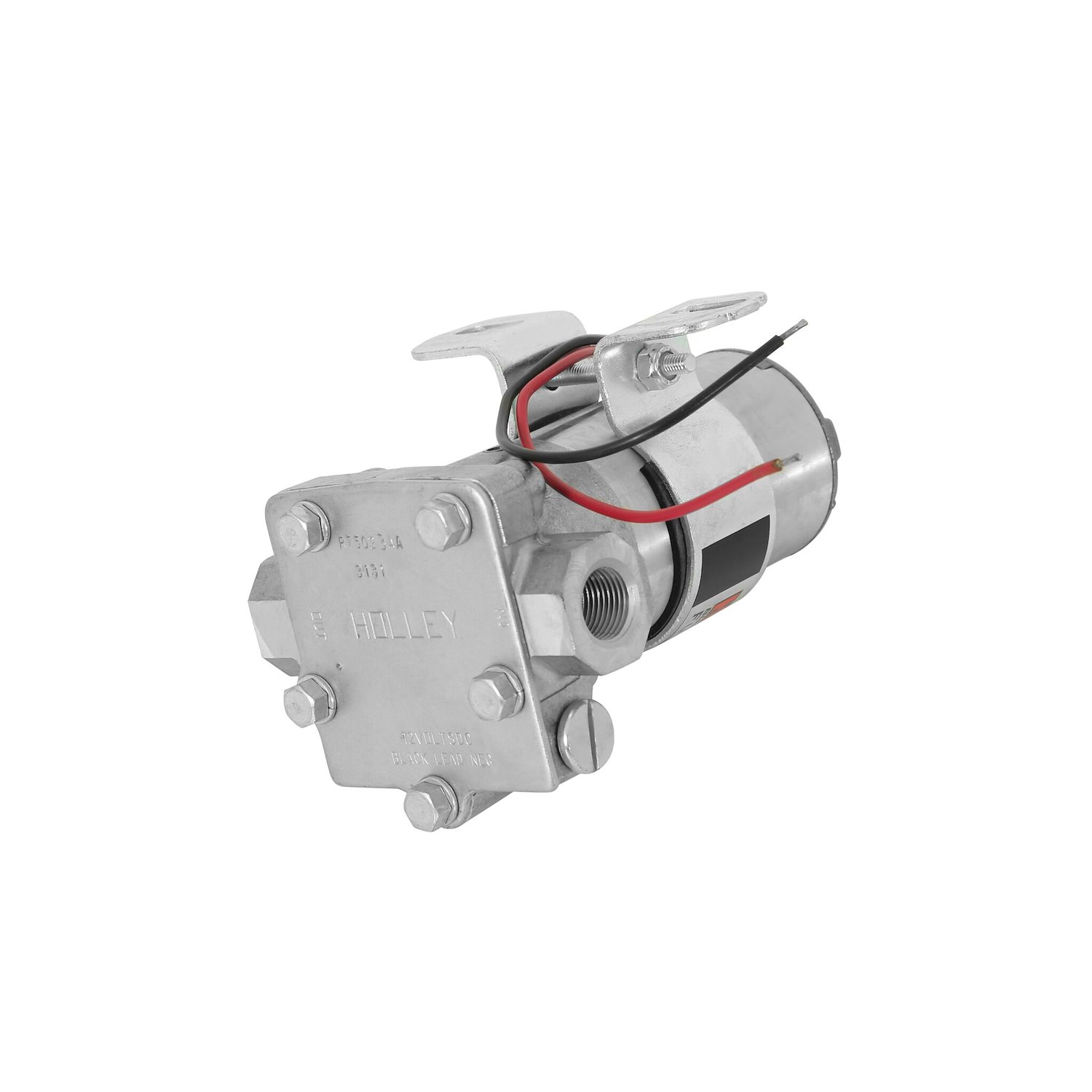

712-815-1 Marine Black Electric Fuel Pump for Carbureted Engines [14 psi]
$43295
Ships on 12/15/2026
Lowest Price Guarantee140 GPH Black Marine
- Marine Black Electric Fuel Pump
- Gasoline, Alcohol, Methanol
- Maximum Pressure: 14 psi
- Free Flow: 140 GPH
- Inlet/Outlet: 3/8 in. NPT
- Requires Regulator
- Includes Mounting Bracket
Installation Note: Should be mounted below the fuel level of the tank for a good gravity feed on the inlet side. Designed with a fume tube for marine use and meets U.S. Coast Guard regulations.
- Meets U.S. Coast Guard regulations
- Includes Fuel/vapor tube
- Free-flow capacity of 140 gallons per hour / 530 liters per hour
- Flows 120 gallons per hour maintaining 9 psi line pressure
- Pressure is pre-set at 14 psi (approximately)
- Maximum pressure is 14 psi
- Compatible with alcohol or methanol fuels
- Not designed or recommended for use with fuel injection systems
- Has externally accessible pressure relief valve
- Tumble polished billet look
- Lower housing casting designed for enhanced fuel flow and quiet operation
- Motor draws only 4 amps current
- 7-1/2 amp fuse recommended
- Distinctive 'Black' logo
- Provides constant fuel flow with no pulsation
- Rotor/vane pump design is more tolerant of contaminated fuels
- Weighs only 3 lbs
- Includes mounting bracket
- Repair kits are readily available
- Can be serviced from the pump end
- Use of safety shut-off switch, p/n 510-12-810, strongly recommended
Part TypeElectric Fluid Pump
BrandHOLLEY
Package Height4.5
Package Width6.3
Package Length10.3
Weight3.4 PG
Part CategoryPerformance Parts
Outlet Size3/8 NPT
Maximum Pressure (Psi)14
Outlet AttachmentFemale Threads
Outlet QuantityOne
QuantitySold individually
Inlet QuantityOne
Part FitmentUniversal
Inlet AttachmentFemale Threads
Inlet Size (In.)3/8 NPT
Free Flow Rate140 gph
Vendor Part Number712-815-1
Package Qty1
Package TypeEA
