Chrysler 8HP70 Transmission

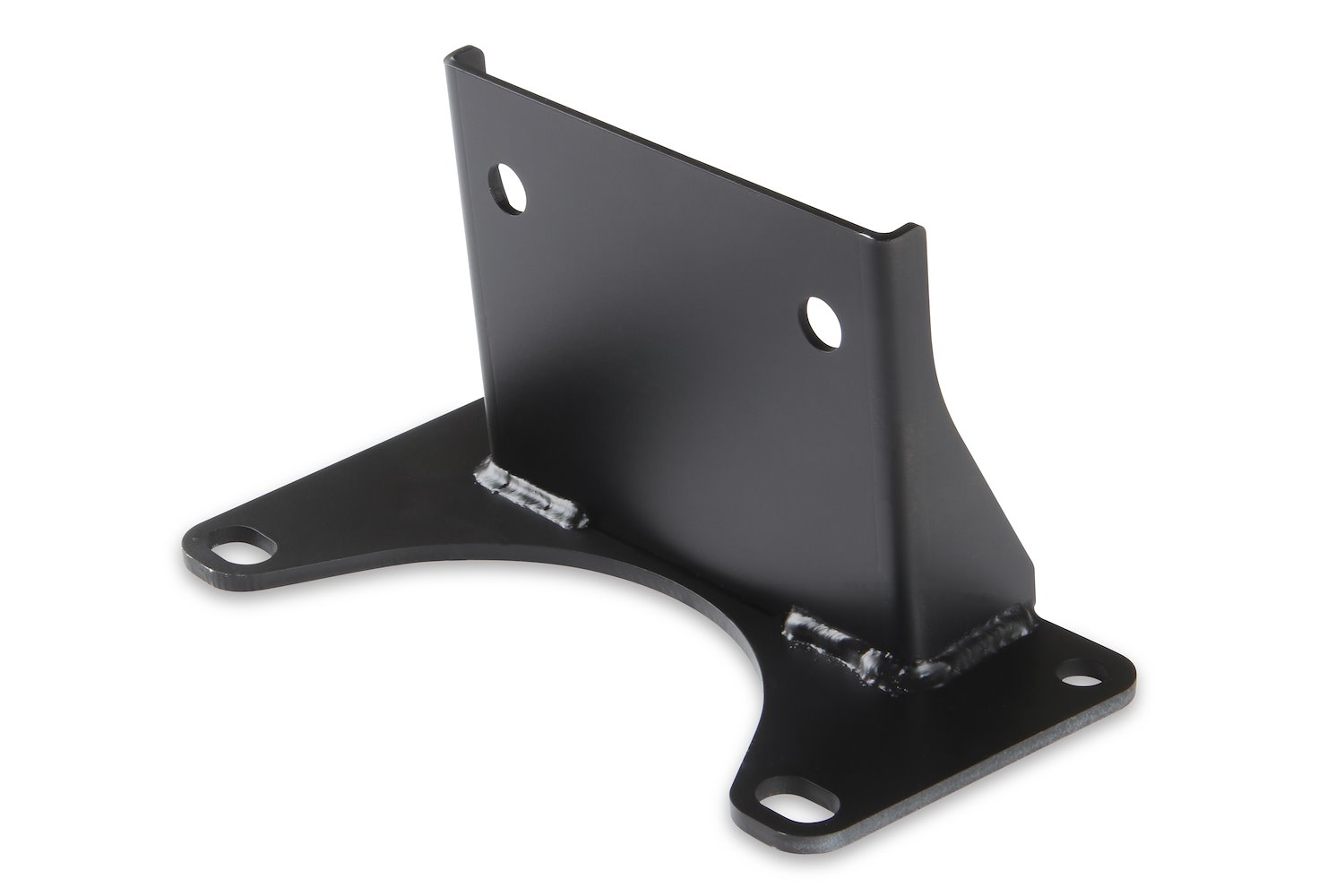

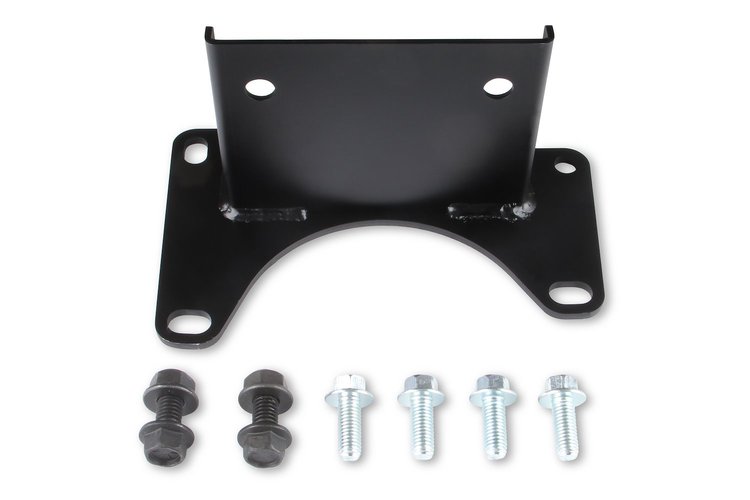

Blackheart Gen III Hemi Swap Transmission Adapter Plate
  • 1970-1974 Challenger, Barracuda (Mopar E-Body)
  • With 8HP90 8-Speed Automatic Transmission
  • Black Painted Steel
  • Sold Individually

    Breakdown of Included Items

    BHS591 Features:

    • Compact high tuck design for maximum ground clearance
    • OEM mounting location for easy installation
    • Constructed from 3/16 in. steel for durability and strength
    • Allows for future transmission swaps without replacing the crossmember

    Notes:

    • Must be used with 520-BHS567 crossmember and 520-BHS566 engine swap mounting brackets (sold separately)
    • Polyurethane Transmission Mount required - 520-71223029HKR (black), 520-71223030HKR (red)
    • Not compatible with an 8HP70 transmission
    • Use a left/driver side-mounted starter to avoid clearance issues if using the factory steering
    • Tunnel and pinch weld modifications are required
    • Output flange adapter, custom driveshaft, and fabrication for a shifter are required
    • Transmission Adapters for Engine and Transmission Swaps Using Hooker Blackheart Modular Crossmembers

      Hooker Blackheart Transmission Crossmember Adapters allow transmission swaps without changing the entire crossmember.

    Part TypeTransmission Adapter
    Product LineHooker Blackheart Transmission Crossmember Adapter Brackets
    BrandHOOKER HEADERS
    Package Height10.2
    Package Width10.5
    Package Length10.6
    Weight3.68 PG
    Part CategoryPerformance Parts
    Transmission Model8HP90
    QuantitySold individually
    Mounting Hardware IncludedYes
    Adapter FinishBlack
    Adapter MaterialSteel
    Transmission TypeAutomatic
    Vendor Part NumberBHS591
    Package Qty1
    Package TypeEA
