Lower Control Arms 1967-1972 GM C-10

Name: Lower Control Arms 1967-1972 GM C-10
Brand: HOTCHKIS
SKU: 515-11390L
Price: 1923.08 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

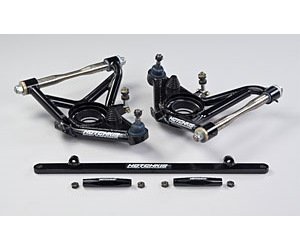

GM Tubular Lower A-Arms

1967-1972 GM C-10

Install the Hotchkis Sport Suspension Tubular Lower A-Arms on your 67-72 C-10 Pickup and gain vastly increased handling and control. These 100% TIG welded; control arms are packed with features to make your truck handle like a G-machine. Completely re-engineered these arms extend the wheelbase 1.8" and add up to +9° Caster for precise handling and maximum front end grip. The arms also feature CNC machined inset spring cups with polyurethane spring seats, and a Hotchkis exclusive, shim system that allows fine tuning the ride height up or in ¼" increments for different wheel/tire combinations or motors. 4130 Chromoly cross shafts are also included along with a bronze rear bushing for maximum heat resistance and smooth operation. The front bushing is smooth operating Delrin and is greasable for maximum service life. To control bump steer we've included a specially engineered center link assembly and heavy duty tie rod sleeves. High articulation heim joint end links are included, as well as reinforced shock mounts and heavy duty ball joints. The arm is finished in gloss black powdercoat and comes complete and ready to install. You won't find a better quality, more thoroughly engineered arm from any other source. For even greater handling improvements combine with the Hotchkis Sport Suspension Tubular Upper A-Arms. PROUDLY MADE IN THE USA.

Part TypeControl Arm

BrandHOTCHKIS

Package Height7.0

Package Width15.0

Package Length22.0

Weight75.0 PG

Part CategoryPerformance Parts

Ball Joint IncludedNo

Hardware IncludedYes

Arm FinishBlack powdercoated

Bushing MaterialBronze/Delrin

Arm MaterialSteel
