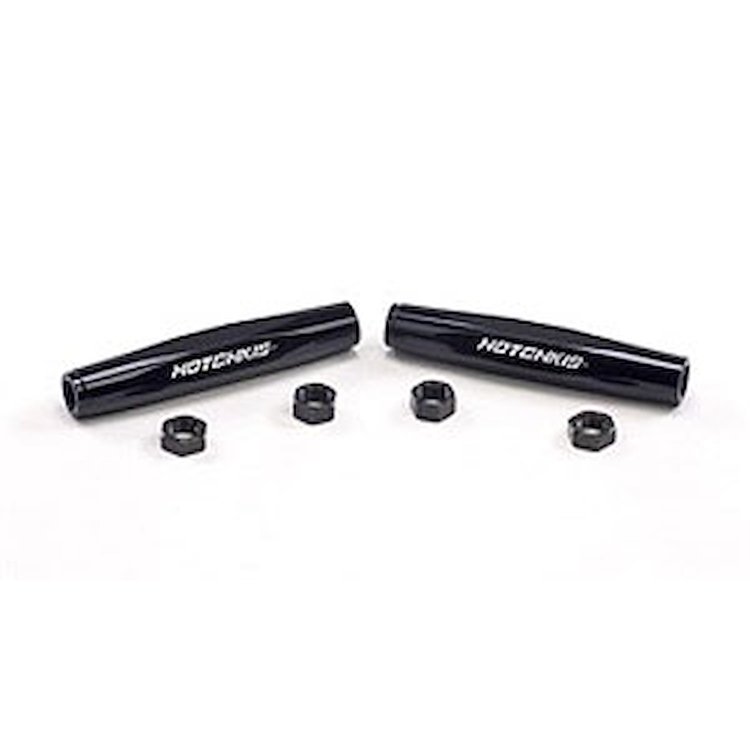

Tie Rod Sleeves 1967-72 Chevy C10 Truck

Name: Tie Rod Sleeves 1967-72 Chevy C10 Truck
Brand: HOTCHKIS
SKU: 515-16391
Price: 152.10 USD
Availability: InStock

^$152¹⁰

Ships on Sep 15, 2026

Lowest Price Guarantee

Tie Rod Sleeves

1967-72 Chevy C10 Truck
1963-66 Chevy C10 2WD
Thread: 5/8" to 5/8"
Body Length: 6-1/2"

Additional Information:
71-72 trucks have larger tapered inner tie rod ends and will be required to buy 65-70 inner tie rods to accommodate the Hotchkis center link. You can purchase the 5/8" inner tie rod P/N ES370R or equivalent. You will be using the included Hotchkis 5/8" to 11/16" tie rod sleeves. These will adapt the inner 5/8" thread and the outer 11/16" thread. Trucks using a 73-87 late model conversion spindle will also be using the included Hotchkis 5/8" to 11/16" tie rod sleeves. Trucks using a 63-70 disc brake conversion spindle utilize the 5/8" outer tie rod ends and you will need to purchase Hotchkis kit #16391, which has the proper 5/8" to 5/8" tie rod sleeves.

Part TypeTie Rod End Adjusting Sleeve

BrandHOTCHKIS

Package Height3.8

Package Width5.3

Package Length8.4

Weight1.38 PG

Part CategoryPerformance Parts

PositionLeft Or Right

MaterialSteel

Part FitmentDirect Fit

Vendor Part Number16391

Package Qty1

Package TypeEA

No Questions

No Reviews

Some parts are not legal for use in California or other states with similar laws / regulations
