Made in USA
Rear Trailing Arms 1958-1964 GM B-Body
Product Discontinued
HOTCHKISPART NUMBER: 515-1813

Rear Trailing Arms 1958-1964 GM B-Body

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

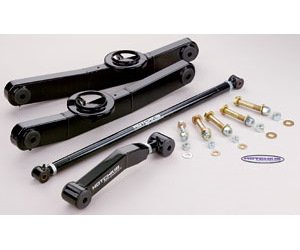

GM Upper & Lower Trailing Arms
    Rear Trailing Arm Kit
  • 1958-1964 GM B-Body
  • Black Powdercoated Finish
    Includes:
  • Upper Adjustable Trailing Arms
  • Lower Non-Adjustable Trailing Arms
  • Adjustable Pan Hard Rod

    Note: This package has two upper trailing arms. Vehicles equipped with one (1) upper arm should use part 515-1820.

    Upgrade your rear suspension.

    The upper and lower trailing arms work together to positively locate and control the rear axle. Launches are quicker, smoother and more consistent by eliminating wheel hop. Cornering and overall stability are dramatically improved through increased roll stiffness and sway bar effectiveness. The fabricated Trailing Arms are constructed from high quality, heli-arc welded, .120'' wall steel tubing. They feature an exclusive billet CNC machined spring perch and are fitted with special fluted polyurethane bushings. By eliminating unwanted suspension deflection, these components can easily handle the demands of high horsepower, big tires and even racing slicks. .

    Show More

Part TypeTrailing Arm
Product LineHotchkis Performance Rear Suspension Arms and Accessories
BrandHOTCHKIS
Package Height4.0
Package Width6.0
Package Length17.0
Weight51.0 PG
Part CategoryPerformance Parts
Bushing ColorBlack
Rear Shocks/Struts IncludedNo
End Link Bushings IncludedNo
Center Link IncludedNo
Rear Coil Springs IncludedNo
Front Coil Springs IncludedNo
Upper Trailing Arms IncludedYes
Inner Tie Rod Ends IncludedNo
FinishPowder Coat
Upper Control Arms IncludedNo
Subframe Connectors IncludedNo
Panhard Bar IncludedYes
Front Sway Bar IncludedNo
Bushing MaterialPolyurethane
Lower Control Arms IncludedNo
Tie Rod Sleeves IncludedNo
Wheel Studs IncludedNo
Chassis Stiffener IncludedNo
QuantitySold as a kit
Mounting Hardware IncludedYes
MaterialSteel
Front Shocks/Struts IncludedNo
Trailing Arm Mount Braces IncludedNo
Torque Arm IncludedNo
Lower Trailing Arms IncludedYes
Rear Strut Tower Bar IncludedNo
Outer Tie Rod Ends IncludedNo
Rear Leaf Springs IncludedNo
Spindles IncludedNo
Front Strut Tower Bar IncludedNo
K-Member Support Brace IncludedNo
Sway Bar Bushings IncludedNo
Brake Lines IncludedNo
Rear Sway Bar IncludedNo
Part FitmentDirect Fit
Rear Leaf Spring Bushings IncludedNo
Vendor Part Number1813
Package Qty1
Package TypeEA
