Vehicle Info NeededHOWARDS CAMSPART NUMBER: 466-840306305

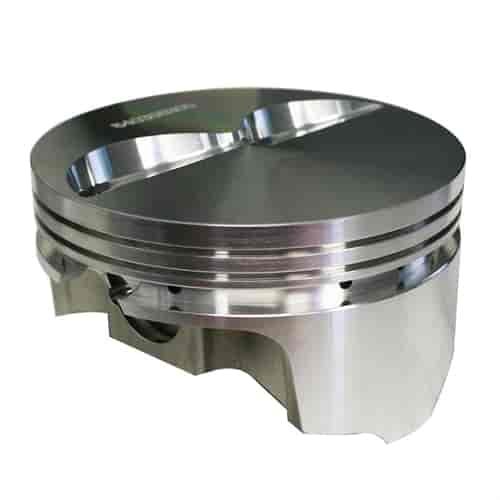

Pro Max Forged Piston Set Chevy, 23-Degree Flat Top
$74499
Ships on 09/11/2026
Lowest Price GuaranteeSmall Block Chevy
23 Degree Flat Top - Standard Piston Rings
23 Degree Flat Top - Standard Piston Rings
Pro Max Forged Piston SetChevy 23-Degree Flat Top -5cc Dome Volume .927 in. Wrist Pin Diameter 392 g. Weight 11.4:1 Compression Ratio (w/ 64cc) 4.030 in. Bore 1/16, 1/16, 3/16 Rings Set of 8
Features:
- Includes Wrist Pins
- 2618 Forged Construction
- 6.000 in. Rod Length
- 3.875 in. Stroke
- 1.062 in. Compression Distance
- Lightweight .150 Wall Wrist Pin Style
- 108 g. Wrist Pin Weight
Note:
- Piston Rings NOT Included
Part TypePiston
BrandHOWARDS CAMS
Package Height5.4
Package Width10.3
Package Length20.2
Weight11.55 PG
Part CategoryPerformance Parts
Piston Head Volume (Cc)-0.5
Compression Distance1.062 in.
Piston Ring Thickness (In.)1/16 x 1/16 x 3/16
Wrist Pin StyleLightweight .150 Wall
QuantitySold as a set of 8
Piston MaterialForged
Pin Diameter0.927 in (23.5 mm)
Part FitmentSemi Universal
Piston StyleFlat top, with two valve reliefs
Bore4.030
Vendor Part Number840306305
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
