Vehicle Info NeededHOWEPART NUMBER: 505-342AA

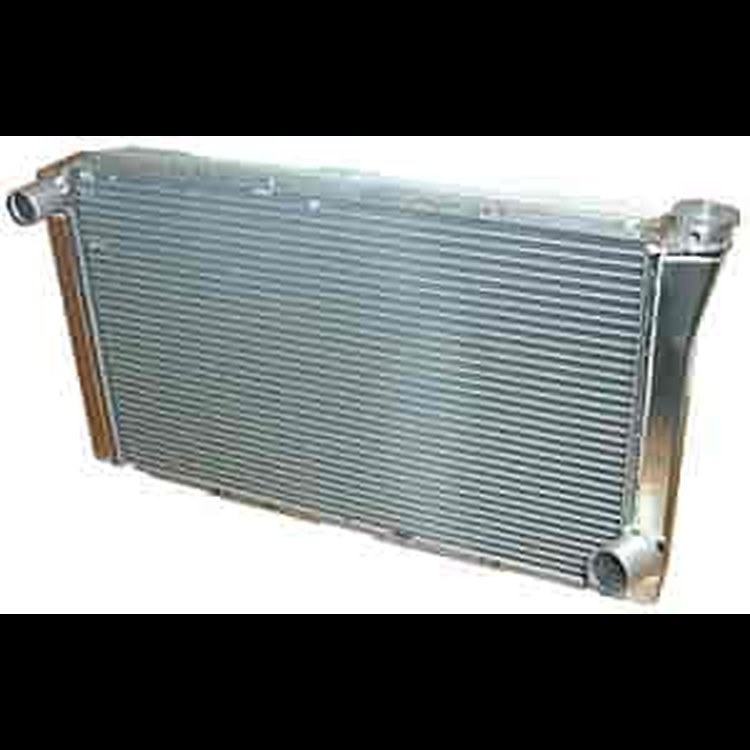

Chevy / GM Style Aluminum Radiator Overall Size: 16" x 27.5"
$36211
Ships on 09/10/2026
Lowest Price Guarantee- Chevy / GM Style Aluminum Radiator
- Overall Size: 16" x 27.5"
- Core: 15" x 24"
- Since 1984 Howe has remained a trusted name for dependable cooling performance and quality workmanship. These radiators are epoxy free with 100% tube to fin contact for maximum heat transfer and dissipation. Typically more than 7% cooler than a flux bonded aluminum core and 15% cooler than copper & brass. Howe radiators feature billet filler necks and uniform height core flanges. They have crimped & welded tanks that are hand fitted to each core. Howe radiators are 100% hand TIG welded by experienced craftsman for exceptional quality & appearance. Each radiator is pressure tested & guaranteed against manufacturing defects.
Part TypeRadiator
Product LineHowe Racing Radiators and Accessories
BrandHOWE
Package Height6.7
Package Width21.3
Package Length33.6
Weight16.3 PG
Part CategoryPerformance Parts
Overall Thickness3 in (76.2 mm)
Overall Height16.5 in (419.1 mm)
Outlet Size1.75 in (44.5 mm)
Radiator Cap IncludedNo
Radiator MaterialAluminum
QuantitySold individually
Inlet LocationUpper driver side
Inlet Size (In.)1 1/2
Core Height14.875 in (377.825 mm)
Core Width24 in (609.6 mm)
Row Quantity2
Outlet LocationLower passenger side
Overall Width27.375 in (695.3 mm)
Tube Size1 in (25.4 mm)
Radiator FinishNatural
Fan IncludedNo
Transmission CoolerNo
Part FitmentSemi Universal
Radiator StyleCrossflow
Vendor Part Number342AA
Package Qty1
Package TypeEA
