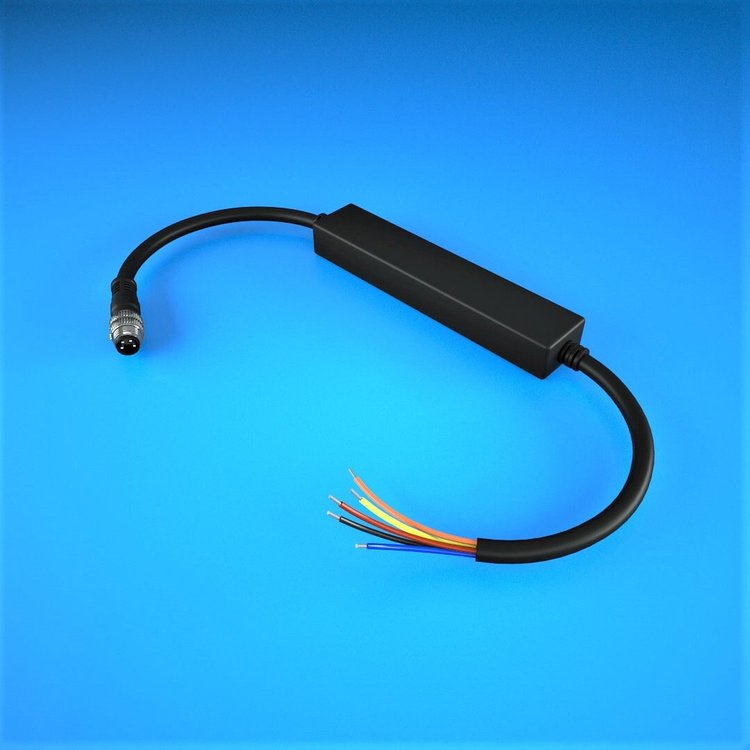

The HP Tuners H021-002-06 Prolink+ cable expands the analog and CAN input capability of an MPVI2+ or MPVI3 interface, letting a tuner wire in additional sensors without needing a separate standalone data logger. It terminates in an M8 connector on the interface end and a 5-wire open lead on the sensor end, giving direct access to two dedicated analog inputs and one CAN bus channel for real-time data acquisition alongside standard VCM Suite logging.

HP Tuners H021-002-06 Technical Specifications:

• Adds two dedicated 0 to 5 V analog inputs plus one CAN bus input running at 500 kbps.
• Samples at 100 Hz for smooth, high-resolution data logging alongside standard channels.
• Measures 12 in. in length with an M8 connector on one end and a 5-wire open lead on the other.
• Built specifically for the MPVI2+ and MPVI3 interfaces; MPVI2+ users must have the Pro Feature Set enabled to use it.

Emissions Disclaimer

HP Tuners designs and manufactures software and hardware tools for vehicle diagnostics, scanning, logging, calibration, and data acquisition purposes. The authorized use of such tools is to bring a motor vehicle into emissions compliance and/or to maintain emissions compliance, as well as for use on competition/racing and other exempted vehicles. HP Tuners does not create or provide tunes or pre-made calibrations.

HP Tuners' Terms of Use, policies, and agreements mandate that users shall comply with all local, state, and federal laws. In using HP Tuners software and hardware tools, you are representing, warranting, and agreeing not to use, employ or allow any HP Tuners tools to operate as a defeat device or to violate emissions compliance in any manner whatsoever. You further represent warrant and agree that the HP Tuners tools shall only be used by manufacturers, calibration businesses, and professionals to develop emissions-compliant and/or exempted calibrations.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
