Vehicle Info NeededHUGHES PERFORMANCEPART NUMBER: 512-22-35L

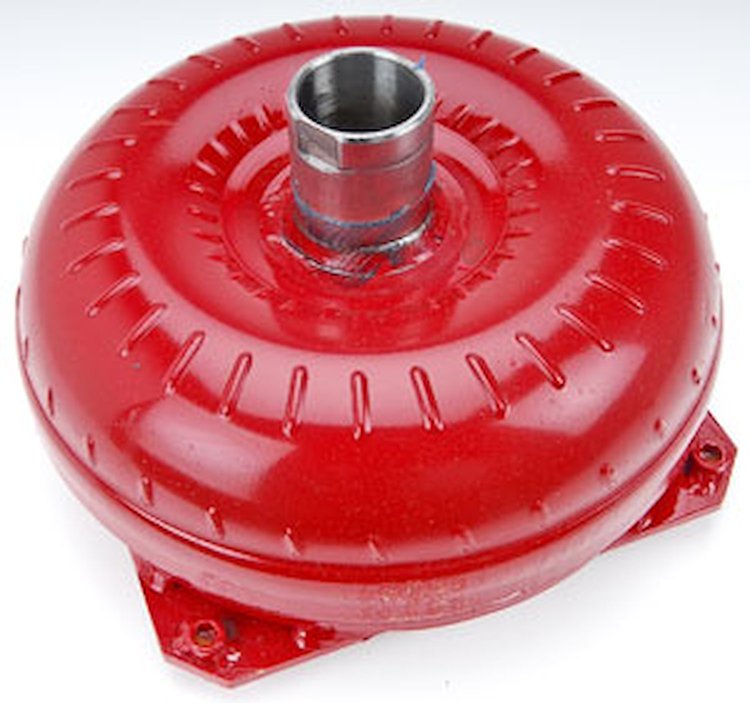

Street-Strip Torque Converter 1985-92 GM 4L60
$1,08699
Ships on 09/15/2026
Lowest Price GuaranteeGM
- Street-Strip Torque Converter
- 1985-92 GM 4L60
- Lockup
- 3000 Stall
- 4 Speed OD w/30 Spline Input
Note: Does not fit 1997-Up LS Engines with original transmissions.
Hughes Performance Street-Strip 35 Series Torque Converters are designed from the ground up for weekend racing and high performance street use. Each Street-Strip 35 Series Torque Converters features a strengthened sprag, special cut stator, and full needle bearings front and rear. Hughes Performance Street-Strip 35 Series Torque Converters are also silicon-brazed for superior weld strength and corrosion resistance. Made in the U.S.A.
Show More
Features
- 3500 Stall RPM
- Silicon-brazed to increase strength
- Front and rear needle bearings to ensure reliability
- Premium sprag and specially-cut stator
- Excellent torque converters for high-performance street use and weekend racing
- Not for use in transbrake applications Note: Stall speeds are approximate and will vary depending upon application.
Part TypeAutomatic Transmission Torque Converter
Product LineHughes Performance Street-Strip 35 Series Torque Converters
BrandHUGHES PERFORMANCE
Package Height7.6
Package Width14.1
Package Length15.4
Weight28.3 PG
Part CategoryPerformance Parts
Hardware IncludedNo
Transmission Mfr.General Motors
Flexplate Bolt Circle (In)10.75
Furnace-BrazedYes
QuantitySold individually
Transmission Mfr. Code4L60-E
Converter Input Spline30
Converter Hub Diameter (In)1.748
Converter Pilot Diameter (In)1.702
Anti-Ballooning PlateNo
Converter Mount Type3 PAD
Input Spline Quantity30 in (762 mm)
BalancedYes
Converter LockupY
Converter Total Height (In)5.875
Part FitmentSemi Universal
LockupYes
Vendor Part Number22-35L
Package Qty1
Package TypeEA
