HUGHES PERFORMANCEPART NUMBER: 512-24-20

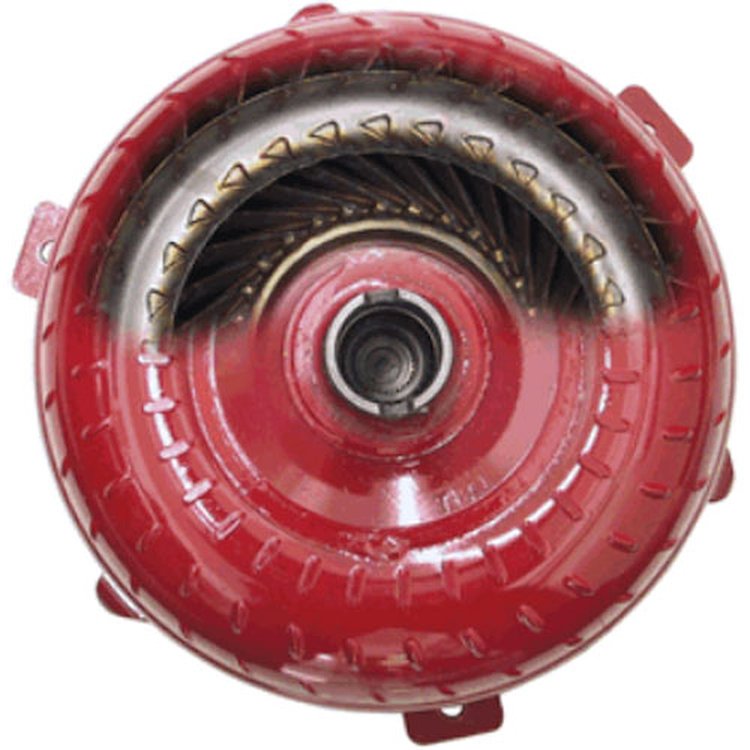

Street Rod Torque Converter 1967-On Chrysler A727 Torqueflite
$50293
2 left in stockItems You Need
Mopar
- Street Rod Torque Converter
- 1967 and Newer Mopar TF8(A727) Transmissions
- Non-Lockup
- 2000 Stall
- 11" Diameter
- 10" Bolt Pattern
- 24 Spline Input
- Uses 5/16" Flexplate Bolts
Hughes Performance Street Rod Torque Converters are designed for the street rod enthusiast needing that slight edge of the OE converter. These Street Rod Torque Converters are built to take every punishing condition you or your engine can create. Hughes Performance Street Rod Torque Converters are manufactured to endure torque and horsepower gains while still delivering top performance when and where you need it.
Show More
Features
- 1600-2200 Stall
- Silicon Brazing for Strength
- Needle Bearings for Reliability
- Stator Modifications for More Torque Multiplication Note: Stall speeds are approximate and depend upon application.
Part TypeAutomatic Transmission Torque Converter
Product LineHughes Performance Street Rod Torque Converters
BrandHUGHES PERFORMANCE
Package Height8.2
Package Width14.0
Package Length14.3
Weight31.42 PG
Part CategoryPerformance Parts
Hardware IncludedNo
Transmission Mfr.Chrysler
Flexplate Bolt Circle (In)10.00
Furnace-BrazedYes
QuantitySold individually
Transmission Mfr. CodeA518 (46RH)
Converter Input Spline24
Converter Hub Diameter (In)1.876
Converter Pilot Diameter (In)1.812
Flexplate Balance Weight (Lbs.)N
Anti-Ballooning PlateNo
Flexplate Ring Gear Teeth130
Converter Mount Type4 PAD
Input Spline Quantity24 in (609.6 mm)
BalancedYes
Converter Mounted Ring GearY
Converter LockupN
Converter Total Height (In)5.500
Part FitmentSemi Universal
LockupNo
Vendor Part Number24-20
Package Qty1
Package TypeEA
No Questions
No Reviews
