Vehicle Info NeededHUGHES PERFORMANCEPART NUMBER: 512-25-30LHD

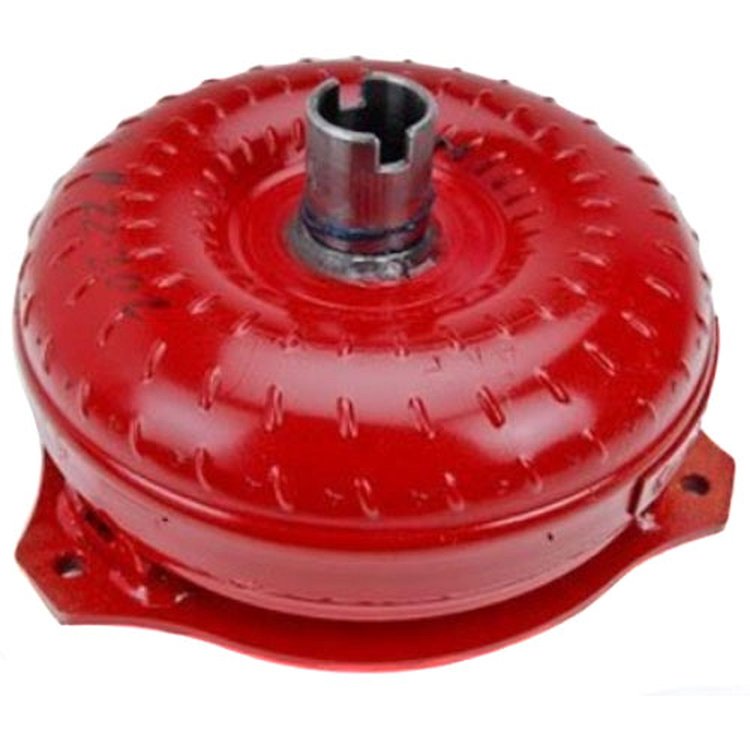

Heavy Duty Pro-Street Torque Converter 1991-99 GM 4L80E
$1,57052
Ships on 11/03/2026
Lowest Price GuaranteeGM
- Heavy Duty Pro-Street Torque Converter
- 1991-99 GM 4L80E
- Electronic
- Lockup
- 3000 Stall
- 4-Speed OD w/35 Spline Input
Heavy Duty:Includes: - Heavy Duty Sprag Assembly
- Steel Turbine Spline
- Spot Brazed Fins
- 7/16" Mounting
All Hughes Performance Pro-Street 30 Series Torque Converters are brazed to increase strength and have full needle bearing design, front and rear to ensure reliability. All stall speeds are approximate and will depend upon application. Made in the U.S.A.
Show More
Features:- 3000 Stall RPM
- Silicon-brazed to increase strength
- Front and rear needle bearings to ensure reliability
- Not for use in transbrake applications Note: Stall speeds are approximate and will vary depending upon application.
Part TypeAutomatic Transmission Torque Converter
Product LineHughes Performance Pro-Street 30 Series Torque Converters
BrandHUGHES PERFORMANCE
Package Height8.2
Package Width14.0
Package Length14.7
Weight45.49 PG
Part CategoryPerformance Parts
Converter Pilot Diameter (In)1.702
Converter Mount Type3 PAD
Flexplate Bolt Circle (In)11.50
Transmission Mfr. Code4L80-E
Converter Total Height (In)6.9375
Converter Input Spline35
Converter Hub Diameter (In)1.999
Vendor Part Number25-30LHD
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
