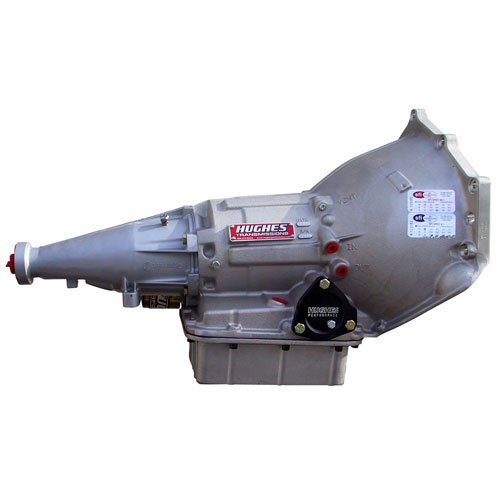

Competition Powerglide Long Transmission SFI Approved One Piece Case
Product Discontinued
HUGHES PERFORMANCEPART NUMBER: 512-28-3-69B2D

Competition Powerglide Long Transmission SFI Approved One Piece Case

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Long Style
    Competition Powerglide Long Transmission
  • SFI Approved One Piece Case
  • 1.69 Ratio Billet Output Shaft
  • E9310 Spur Gears
  • Pro Mod Clutch Drum w/10&10 Racing Discs
  • Full Manual Valve Body w/Transbrake

    More Features:
  • Deep Aluminum Pan
  • High Strength Ringless Input Shaft
  • Locking Filler Tube Assembly

The Hughes Performance Competition Powerglide Transmissions have made a name for themselves on drag strips across the country. It is widely know that the GM Powerglide transmission is the most commonly used transmission on the track. Because it is so popular, Hughes Performance's team of expert engineers spent countless hours of research and development to provide their customers with the most efficient Powerglide transmission money can buy. All Hughes Performance Competition Powerglide Transmissions come equipped with the Hughes Performance Superglide case, as well as 9310 alloy gears and billet output shafts.

Show More

This provides Hughes Performance Competition Powerglide Transmissions with a horsepower rating of 1500+ HP. These Competition Powerglide Transmissions are equipped with quick disconnect cooler line fittings and an inner case liner for total SFI certification. Competition Powerglide Transmissions are also equipped with fluid release transbrakes for quicker reaction times. Made in the U.S.A.

Features

  • Based on the most widely used drag race transmission
  • Heavy duty components provide a 1500+ HP rating
  • Fluid release transbrakes for quicker reaction times Note: Speedometer drive gear and driven gear not included.
Part TypeAutomatic Transmission
Product LineHughes Performance Competition Powerglide Transmissions
BrandHUGHES PERFORMANCE
Package Height20.0
Package Width21.0
Package Length29.0
Weight100.0 PG
Part CategoryPerformance Parts
Transmission Drive TypeRWD
Transmission BellhousingChevrolet
First Gear Ratio (Automatic Transmissions)1.69
Fluid Fill LocationCase
Transmission Tailhousing Length11.50
Transmission Electronic ControlN
Case MaterialAluminum
LockupNo
Transmission Speed2
Transmission Mfr.GM
Flexplate Shield Built InYes
Pan TypeDeep cast aluminum
QuantitySold individually
Transmission Mfr. CodePowerglide
Dipstick IncludedNo
Valve Body StyleFull manual
Transmission Input Spline30
Trans-Brake IncludedNo
Transmission Low Gear Ratio1.69
Input Spline Quantity30 in (762 mm)
Transmission Output Spline27
Transmission Pan TypeAluminum - Deep
Transmission Speedometer TypeMechanical
Part FitmentSemi Universal
Transmission Shield Built InYes
Transmission LockupN
Safety RatingSFI 30.1
Vendor Part Number28-3-69B2D
Package Qty1
Package TypeEA
