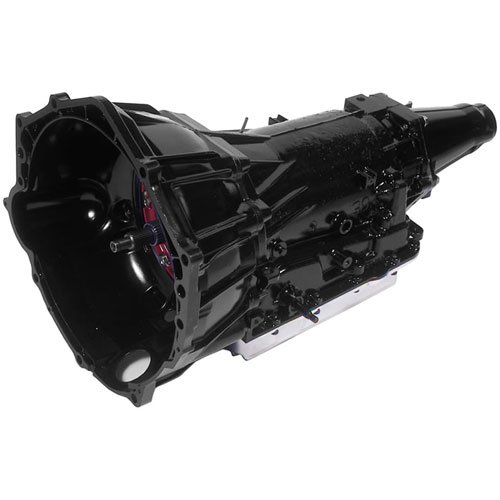

Street-Strip Transmission Assembly 1969-79 GM TH350
InfoVehicle Info Needed
HUGHES PERFORMANCEPART NUMBER: 512-35-3

Street-Strip Transmission Assembly 1969-79 GM TH350

$2,88127
Core Charge: $20000
Truck Freight
ShippingShips on 09/11/2026
Lowest PriceLowest Price Guarantee

GM
    Street-Strip Transmission Assembly
  • 1969-79 GM TH350
  • Transbrake Valve Body
  • Chevy Pattern Applications

Hughes Performance Street-Strip Transmissions With Competition Trans Brakes have been designed for street performance and other applications where tire spinning shifts are desired. Hughes Performance Street-Strip Transmissions contain racing components which increase strength, reliability, and torque capacity. These Hughes Performance Street-Strip Transmissions also feature a Transbrake-ready Hughes Performance Full Manual Valve Bodies which allow you to manually shift through the gears, and utilize a trans brake when the need arises.

Show More

Installation -- All linkage, vacuum lines and kickdown mechanisms must be connected and properly adjusted for any automatic transmission to operate correctly. Hughes recommends a transmission cooler and deep aluminum oil pan, which has 2 to 4 quarts of extra fluid capacity, with any severe-duty, street-strip transmission. Made in the U.S.A.

Features

  • Perfect Transmissions for tiring spinning shifts
  • Hughes Performance precision engineering for superior performance
  • Full Manual Valve Bodies for manual control over all shifts
Part TypeAutomatic Transmission
Product LineHughes Performance Street-Strip Transmissions With Competition Trans Brake
BrandHUGHES PERFORMANCE
Package Height20.0
Package Width21.0
Package Length29.0
Weight125.0 PG
Part CategoryPerformance Parts
Transmission Drive TypeRWD
Transmission BellhousingChevrolet
First Gear Ratio (Automatic Transmissions)2.52
Yoke StyleSlip On
Tailshaft Length6 in (152.4 mm)
Fluid Fill LocationCase
Transmission Tailhousing Length6.00
Transmission Electronic ControlN
Case MaterialAluminum
LockupNo
Transmission Speed3
Transmission Mfr.GM
Flexplate Shield Built InNo
Pan TypeStock
QuantitySold individually
Transmission Mfr. CodeTHM350
Dipstick IncludedNo
Valve Body StyleFull manual
Transmission Input Spline30
Trans-Brake IncludedYes
Transmission Low Gear Ratio2.52
Input Spline Quantity30 in (762 mm)
Transmission Output Spline27
Transmission Pan TypeAluminum - Deep
Transmission Speedometer TypeN/A
Transmission Shield Built InNo
Transmission LockupN
Safety RatingNot SFI Approved
Vendor Part Number35-3
Package Qty1
Package TypeEA
