HUGHES PERFORMANCEPART NUMBER: 512-41-35

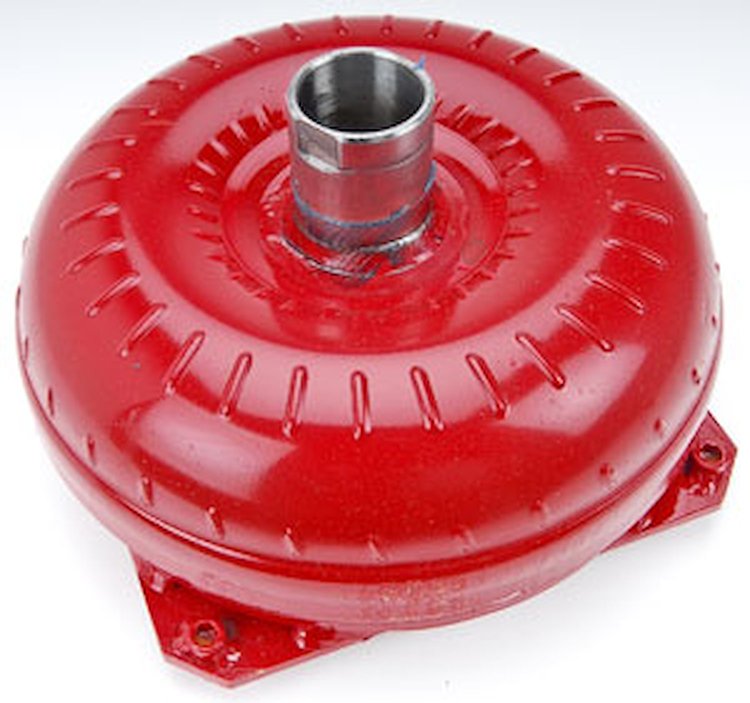

Street-Strip Torque Converter 1970-81 Ford C4
$96499
Ford
- Street-Strip Torque Converter
- 1970-81 Ford C4
- 3000 Stall
- 10" Diameter
- 10.5" Bolt Pattern
- 26 Spline Input
Hughes Performance Street-Strip 35 Series Torque Converters are designed from the ground up for weekend racing and high performance street use. Each Street-Strip 35 Series Torque Converters features a strengthened sprag, special cut stator, and full needle bearings front and rear. Hughes Performance Street-Strip 35 Series Torque Converters are also silicon-brazed for superior weld strength and corrosion resistance. Made in the U.S.A.
Show More
Features
- 3500 Stall RPM
- Silicon-brazed to increase strength
- Front and rear needle bearings to ensure reliability
- Premium sprag and specially-cut stator
- Excellent torque converters for high-performance street use and weekend racing
- Not for use in transbrake applications Note: Stall speeds are approximate and will vary depending upon application.
Part TypeAutomatic Transmission Torque Converter
Product LineHughes Performance Street-Strip 35 Series Torque Converters
BrandHUGHES PERFORMANCE
Package Height7.9
Package Width14.2
Package Length14.3
Weight31.3 PG
Part CategoryPerformance Parts
Hardware IncludedNo
Transmission Mfr.Ford
Flexplate Bolt Circle (In)10.50
Furnace-BrazedYes
QuantitySold individually
Transmission Mfr. CodeC4
Converter Input Spline26
Converter Hub Diameter (In)1.997
Converter Pilot Diameter (In)1.375
Anti-Ballooning PlateNo
Converter Mount Type4 STUD
Input Spline Quantity26 in (660.4 mm)
BalancedYes
Converter LockupN
Converter Total Height (In)5.625
Part FitmentSemi Universal
LockupNo
Vendor Part Number41-35
Package Qty1
Package TypeEA
