Made in USA
XFM Series Diesel Torque Converter 1992-02 Ford E40D/Ford 4R100
InfoVehicle Info Needed
HUGHES PERFORMANCEPART NUMBER: 512-46ALXFM

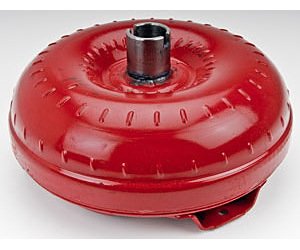

XFM Series Diesel Torque Converter 1992-02 Ford E40D/Ford 4R100

$1,16599
ShippingShips on 09/15/2026
Lowest PriceLowest Price Guarantee

Ford
    XFM Series Diesel Torque Converter
  • 1992-02 Ford E40D HD/4R100 4 Speed
  • Powerstroke Diesel
  • 12" Diameter

Hughes XFM Series Diesel Torque Converters provide super-duty performance and are made for the Ford Powerstroke, the Dodge Cummins and the GM Duramax. Hughes XFM Series Diesel Torque Converters are built to take all the punishment these modern diesel engines can create by using billet steel covers that cannot flex or distort even under the most challenging situations. Instead of trying to "lockup" the converter for increased efficiency and fuel mileage with any type of single disc, Hughes XFM Series Diesel Torque Converters have a triple-disc design. This triple-disc design significantly increases the torque converter's ability to endure the increase in torque and power. Made in the U.S.A.

Show More

Features

  • Heavy duty engineering to withstand modern diesel engine outputs
  • Billet steel covers for zero flex under load
  • Triple-disc design for increased endurance
Part TypeAutomatic Transmission Torque Converter
Product LineHughes XFM Series Diesel Torque Converters
BrandHUGHES PERFORMANCE
Package Height10.5
Package Width13.5
Package Length13.5
Part CategoryPerformance Parts
Converter Pilot Diameter (In)1.375
Converter Mount Type6 STUD
Transmission Mfr.Ford
Flexplate Bolt Circle (In)11.50
Converter LockupN
Transmission Mfr. Code4R100
Converter Total Height (In)6.9375
Converter Input Spline31
Converter Hub Diameter (In)1.997
Vendor Part Number46ALXFM
Package Qty1
Package TypeEA
