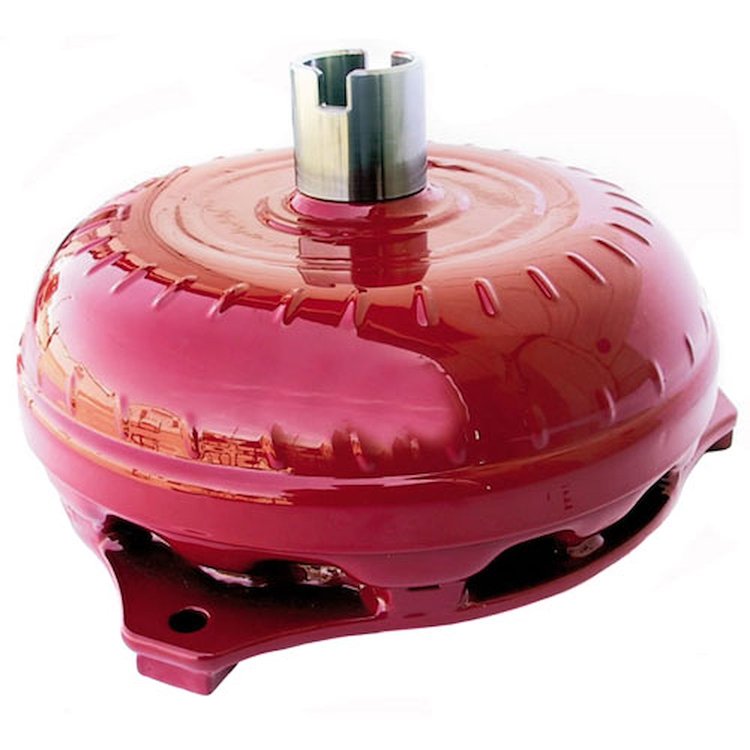

PRO-IV Series Torque Converter GM TH350/GM TH400 [10 in. Diameter]
Product Discontinued
HUGHES PERFORMANCEPART NUMBER: 512-GM104

PRO-IV Series Torque Converter GM TH350/GM TH400 [10 in. Diameter]

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

GM TH350/TH400
PRO-IV Series Torque Converter
  • GM TH350 & GM TH400
  • 10 in. Diameter
  • Special Order Item – See Below

    Special Order Item:
    Please use the SureFit order form below or call customer care for ordering information at 1-800-345-4545.

    >> Click here for SureFit Hughes Tech Card Order Form <<
    The ordering process is simple. Just complete the form above and email it to [email protected]

    Features:

    • 10.750 in. Bolt Pattern
    • 30 Spline
    • Custom Racing Converters to Fit Your Needs

      Hughes Performance PRO-IV Series torque converters are more aggressive by design. These units are engineered with extra furnace brazing, which results in more efficiency, less slippage and will produce excellent repeatability, a must for bracket-type race situations. The PRO-IV Series are available in 8 in., 9 in., and 10 in. configurations.

      Show More

      Each unit is handcrafted and requires the following information to build the best-suited converter for your application; engine & carburetor sizes, transmission type, vehicle weight, camshaft specs, rear end ratio, motor plate thickness, and in some cases, your desired stall ratio.

    Part TypeAutomatic Transmission Torque Converter
    Product LineHughes Performance PRO-IV Series Torque Converters
    BrandHUGHES PERFORMANCE
    Package Height6.5
    Package Width13.5
    Package Length13.5
    Weight38.5 PG
    Part CategoryPerformance Parts
    Hardware IncludedNo
    Transmission Mfr.General Motors
    Flexplate Bolt Circle (In)10.75
    Furnace-BrazedYes
    QuantitySold individually
    Transmission Mfr. CodeTHM350
    Converter Input Spline30
    Converter Hub Diameter (In)1.873
    Converter Pilot Diameter (In)1.702
    Anti-Ballooning PlateYes
    Converter Mount Type6 PAD
    BalancedYes
    Converter LockupN
    Converter Total Height (In)6.125
    LockupNo
    Diameter10 in (254 mm)
    Vendor Part NumberGM104
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Some parts are not legal for use in California or other states with similar laws / regulations
