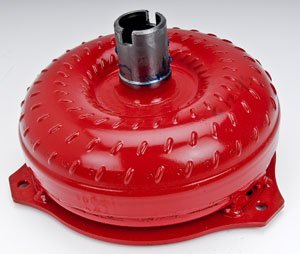

Heavy Duty Pro-Competition Torque Converter 1969-79 GM TH350
Product Discontinued
HUGHES PERFORMANCEPART NUMBER: 512-GM45HD

Heavy Duty Pro-Competition Torque Converter 1969-79 GM TH350

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

GM
    Heavy Duty Pro-Competition Torque Converter
  • 1969-79 GM TH350
  • 1965-Newer GM TH400 w/3 Pad
  • Non-Lockup
  • 4500 Stall
  • 10" Diameter

    Heavy Duty:

    Includes:
  • Heavy Duty Sprag Assembly
  • Steel Turbine Spline
  • Spot Brazed Fins
  • 7/16" Mounting

All Hughes Performance Pro-Competition 45 Series Torque Converters have full needle bearing replacement of fiber washers. In addition they utilize a special silicon spot brazing on top and bottom add to strength and reliability and include a premium built sprag assembly and a specially machined stator. Made in the U.S.A.

Features:

  • 4500 Stall RPM
  • Silicon-brazed to increase strength
  • Heavy-duty needle bearings replace fiber thrust washers
  • Premium sprag and specially-cut stator
  • Not for use in transbrake applications

Note: Stall speeds are approximate and will vary depending upon application.

Part TypeAutomatic Transmission Torque Converter
Product LineHughes Performance Pro-Competition 45 Series Torque Converters
BrandHUGHES PERFORMANCE
Package Height6.9
Package Width11.7
Package Length12.6
Weight23.49 PG
Part CategoryPerformance Parts
Converter Pilot Diameter (In)1.702
Converter Mount Type3 PAD
Flexplate Bolt Circle (In)10.75
Transmission Mfr. CodeTHM350
Converter Total Height (In)6.125
Converter Input Spline30
Converter Hub Diameter (In)1.873
Vendor Part NumberGM45HD
Package Qty1
Package TypeEA
