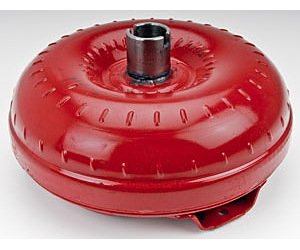

XFM Series Diesel Torque Converter 1965-90 GM TH400
InfoVehicle Info Needed
HUGHES PERFORMANCEPART NUMBER: 512-GM5XFM-1

XFM Series Diesel Torque Converter 1965-90 GM TH400

$62099
ShippingShips on 09/15/2026
Lowest PriceLowest Price Guarantee

GM
    XFM Series Diesel Torque Converter
  • 1965-90 GM TH400
  • 13" Diameter
  • 6 Pad

Hughes XFM Series Diesel Torque Converters provide super-duty performance and are made for the Ford Powerstroke, the Dodge Cummins and the GM Duramax. Hughes XFM Series Diesel Torque Converters are built to take all the punishment these modern diesel engines can create by using billet steel covers that cannot flex or distort even under the most challenging situations. Instead of trying to "lockup" the converter for increased efficiency and fuel mileage with any type of single disc, Hughes XFM Series Diesel Torque Converters have a triple-disc design. This triple-disc design significantly increases the torque converter's ability to endure the increase in torque and power. Made in the U.S.A.

Show More

Features

  • Heavy duty engineering to withstand modern diesel engine outputs
  • Billet steel covers for zero flex under load
  • Triple-disc design for increased endurance
Part TypeAutomatic Transmission Torque Converter
Product LineHughes XFM Series Diesel Torque Converters
BrandHUGHES PERFORMANCE
Package Height8.2
Package Width14.2
Package Length14.3
Weight38.74 PG
Part CategoryPerformance Parts
Hardware IncludedNo
Transmission Mfr.General Motors
Flexplate Bolt Circle (In)11.50
Furnace-BrazedYes
QuantitySold individually
Transmission Mfr. CodeTHM350
Converter Input Spline30
Converter Hub Diameter (In)1.873
Converter Pilot Diameter (In)1.702
Anti-Ballooning PlateNo
Converter Mount Type6 PAD
Input Spline Quantity30 in (762 mm)
BalancedYes
Converter LockupN
Converter Total Height (In)6.125
LockupNo
Vendor Part NumberGM5XFM-1
Package Qty1
Package TypeEA
