Product Discontinued
HURST DRIVELINE CONVERSIONSPART NUMBER: 518-TCET4616-MID

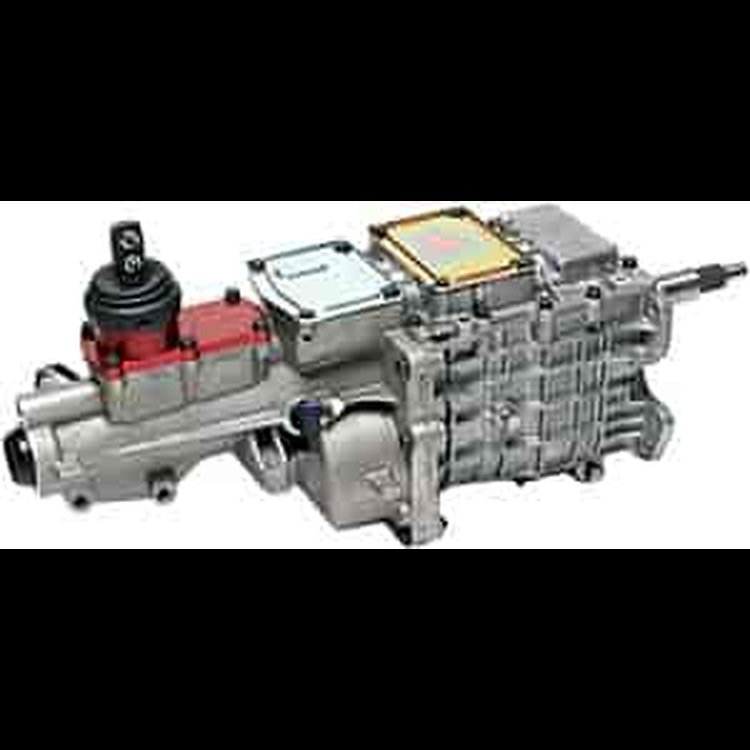

TKO 500 Transmission Mid Shift
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Midshift TKO 500
- TKO 500 Transmission
- Mid Shift
- Use with Bench Seat
- Trucks Tri-5 Chevy
- Shifter Not Included
Strong, versatile, and ideal for high-performance race applications, TKO Transmissions are the ultimate upgrade for vehicles making 500+ ft/lbs of torque. The TKO 500 has 500 ft/lbs TQ capacity, and the TKO 600 has 600 ft/lbs TQ capacity. Three fifth gear ratios available: 0.64 or 0.68 reduces RPM for a fun ride and enhanced fuel efficiency while 0.82 is great for racing and long straightaways. TKO Transmissions are not direct replacements; modification is required to install.
Show More
Features- For GM or Ford
- 31-spline output shaft
- 15.8" crossmember mounting location
- Neutral safety switch & back-up light sensor
- Electronic & mechanical speedometer pickups
- Tapered roller bearings minimize noise & wear
- 1-piece countershaft to better handle high torque
- ASTM 4615 steel gears & shafts for greater torque capacity
- 83mm center distance between shafts permits larger gears & more torque
- Internal triple-rail shift system with cast iron shift forks
- Short throw billet aluminum shifter included, Except Mid Shift - Shifter Not Included (shifter handle & knob not included)
- Two available shifter locations: 19.5" delivered position and 16.75" reversed position
Product LineHurst Driveline TKO 500 / TKO 600 5-Speed Transmissions
BrandHURST DRIVELINE CONVERSIONS
Package Height14.0
Package Width18.0
Package Length36.0
Weight120.0 PG
Part CategoryPerformance Parts
Vendor Part NumberTCET4616-MID
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
