Product Discontinued

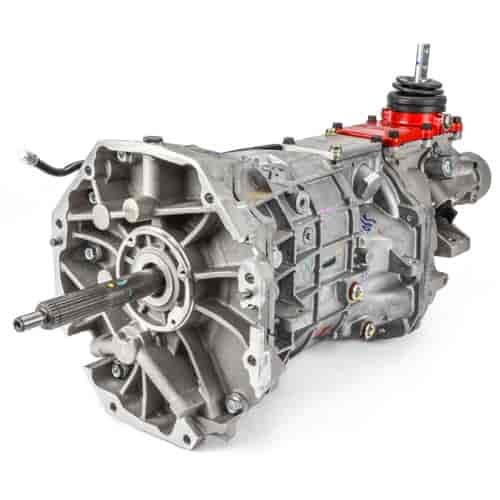

HURST DRIVELINE CONVERSIONSPART NUMBER: 518-TUET11009
T-56 6-Speed Transmission Engine: LS
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
GM
- T-56 6-Speed Transmission
- Engine: LS
- Torque Capacity: 700
- 2.66 1st Gear
- 1.78 2nd Gear
- 1.30 3rd Gear
- 1.00 4th Gear
- 0.80 5th Gear
- 0.63 6th Gear
- 2.90 Reverse
- Uses 31-spline Ford C-6 Style Yoke
NOTE: NOT AN OEM REPLACEMENT FOR VEHICLES ORIGINALLY EQUIPPED WITH A GM T-56.
- The kingpin of the Tremec high performance line-up, the all-new T-56 Magnum takes the very best from TREMEC's current OEM technologies and pairs it with the most popular features of our all-business TKO 5-speed. Able to withstand a massive 700 lb-ft. of torque while providing unbelievably crisp shifts, no other manual transmission on the planet offers as much combined strength, versatility, and general ease of use as the T-56 Magnum. The Magnum is an aftermarket version of the same transmission found in many of today's most celebrated factory super cars-including the ZR1 Corvette and sinister ACR Viper. A world-class transmission in every respect, it's the best transmission on the market for those who will accept nothing less. Bellhousings not included.Features:
- For GM or Ford
- 31-Spline Output Shaft
- Stronger Input Shaft
- Can Withstand up to 700 ft-lbs of Torque
- Increased Face Widths
- Redesigned Shift Forks
- 2-Piece Laser-Beam Welded Construction
- Modified Transmission Case
Part TypeManual Transmission
Product LineHurst Driveline T-56 6-Speed Transmissions
BrandHURST DRIVELINE CONVERSIONS
Package Height16.0
Package Width20.0
Package Length40.0
Weight174.0 PG
Part CategoryPerformance Parts
Fourth Gear Ratio1.00:1
Fifth Gear Ratio0.80:1
Yoke IncludedNo
Number Of Gears6
Sixth Gear Ratio0.63:1
Second Gear Ratio1.78:1
QuantitySold individually
First Gear Ratio2.66:1
Input Spline Quantity26 in (660.4 mm)
Input Shaft Diameter1.125 in (28.575 mm)
Shifter IncludedYes
Case MaterialAluminum
Third Gear Ratio1.30:1
Output Shaft Spline Quantity31
Bellhousing IncludedNo
Vendor Part NumberTUET11009
Package Qty1
Package TypeEA
