![ALPHA Wheel, Size: 17 X 8.5", Bolt Pattern: 5 X 5" [Gunmetal]](https://www.jegs.com/images/mini_750/500/504/504-1217857347gm.jpg)
Vehicle Info NeededICON VEHICLE DYNAMICSPART NUMBER: 504-1217857347GM

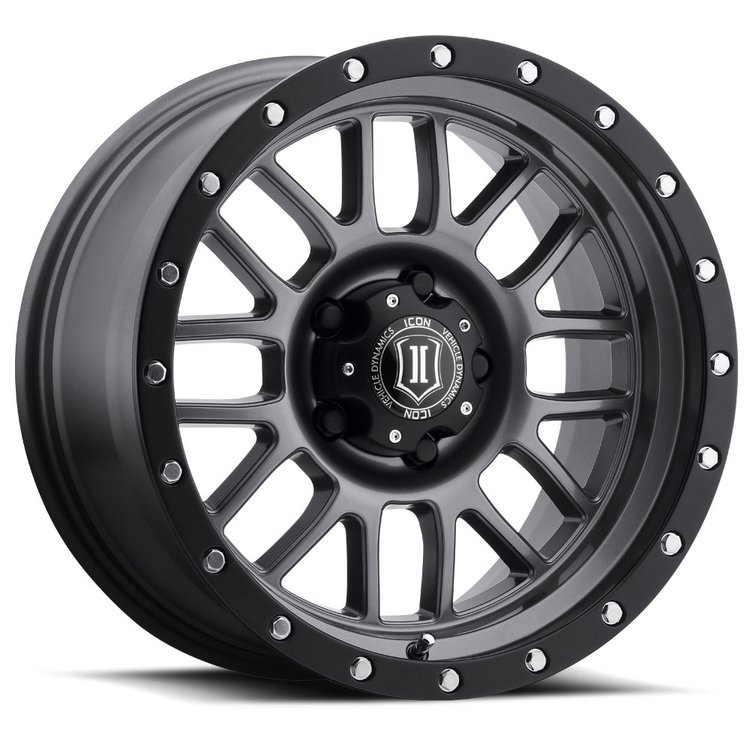

ALPHA Wheel, Size: 17 X 8.5", Bolt Pattern: 5 X 5" [Gunmetal]
Color:
$30095
Ships on 09/11/2026
Lowest Price Guarantee17 X 8.5"
ALPHA WheelSize: 17 X 8.5" Bolt Pattern: 5 X 5" Offset: 0 mm Backspace: 4.75" Finish: Gunmetal
JEGS How to Measure Wheel Fitment: Click Here
ICON Vehicle Dynamics 1217857347GM Features:
- Wheel dimensions optimize vehicle dynamics and tire clearance to reduce scrub radius
- Engineered to maximize caliper clearance and wheel position for uninterrupted suspension travel
- Reduced unsprung weight and rotating mass improve on and off-road vehicle performance
- Aluminum alloy construction provides strength that is well-suited for off-road use
Bring Changes of Form and Function with a Set of Gunmetal Alpha Wheels
ICON Alloys Alpha Wheels feature a rally-inspired multi-spoke pattern with simulated Beadlock ring hardware that stands apart from the competition. These wheels have an aluminum alloy construction for strength and reliability for both on and off-road performance. They have been engineered to maximize brake caliper clearance and mounting position to gain adequate suspension travel and steering angle. Each features a light rotating mass that improves rolling resistance, perfect for when adding larger, aggressive tread tires. Available in gunmetal with a black ring and popular 17 and 20-inch sizes.
Also available in Bronze, Black Machined, Satin Black, Gloss Black, and Titanium finishes.
Part TypeWheel
Product LineICON Vehicle Dynamics Alloys Alpha Gunmetal with Black Ring Wheels
BrandICON VEHICLE DYNAMICS
Package Height10.0
Package Width19.0
Package Length19.0
Weight30.0 PG
Wheel Size17 x 8.5 in.
Dot ApprovedYes
ColorGunmetal
Quantity1
Wheel FinishGunmetal
Back Spacing4.75 in (120.65 mm)
Wheel MaterialCast Aluminum
Bolt Pattern6 x 5.5 in.
Offset0 In.
Backspacing4.75 in.
Dot-ApprovedYes
Center Bore Diameter2.815 in.
Center Cap IncludedYes
Wheel Bolt Pattern6 x 5 1/2 (139.7 mm)
Wheel Diameter17 in.
Wheel Offset0 mm (0 in)
Wheel TypeJeep, Truck, SUV Wheels
Wheel Width8.5 in.
Vendor Part Number1217857347GM
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
