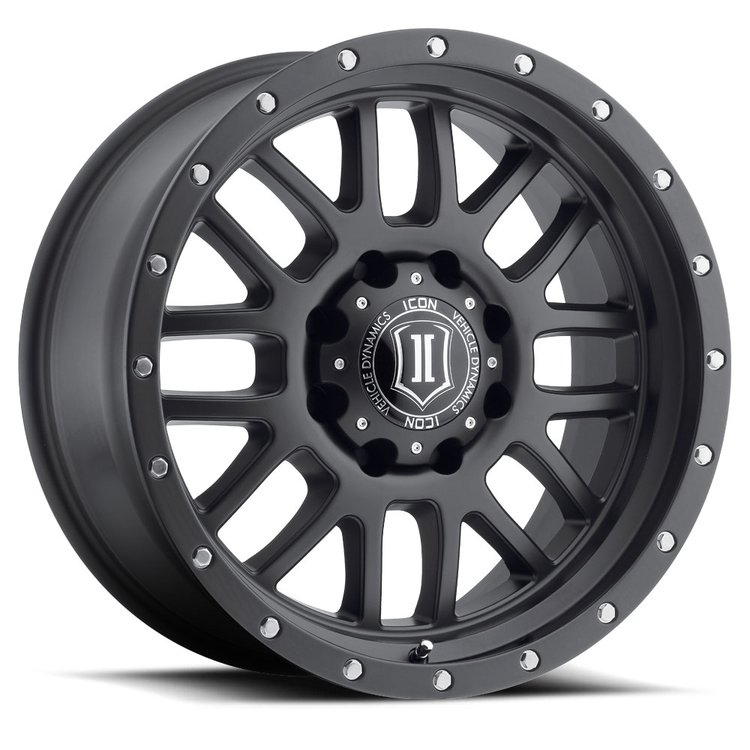

ALPHA Wheel, Size: 20 X 9", Bolt Pattern: 8 X 6.5" [Satin Black]
InfoVehicle Info Needed
ICON VEHICLE DYNAMICSPART NUMBER: 504-1220908057SB

ALPHA Wheel, Size: 20 X 9", Bolt Pattern: 8 X 6.5" [Satin Black]

$37095
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

20 X 9"
Alpha Wheel
  • Size: 20"x9"
  • Bolt Pattern: 8 x 6.50"
  • Offset: +19 mm
  • Backspacing: 5.75 in.
  • Hub Bore: 125.2 mm
  • Finish: Satin Black

    JEGS How to Measure Wheel Fitment - Click Here

    The ICON Vehicle Dynamics 1220908057SBMW Alpha wheel from ICON Alloys is a 20"x9" aluminum alloy wheel for lifted trucks, Jeeps and SUVs running larger tires. It has a Satin Black finish and a 8 x 6.50" bolt pattern, with +19 mm offset and 5.75 in. of backspacing to position the wheel for caliper and suspension clearance.

    ICON Vehicle Dynamics 1220908057SBMW Technical Specifications:

    • Measures 20"x9" with 5.75 in. of backspacing.
    • 8 x 6.50" bolt pattern for 8-lug applications.
    • Offset is +19 mm and hub bore is 125.2 mm.
    • Satin Black finish.
    • Aluminum alloy construction suited for on- and off-road use.
    • Accepts 60-degree conical seat lug nuts, sold separately.
    • Sold individually; tire not included.

      • Bring Changes of Form and Function with a Set of Satin Black Alpha Wheels

      ICON Alloys Alpha Wheels feature a rally-inspired multi-spoke pattern with simulated Beadlock ring hardware that stands apart from the competition. These wheels have an aluminum alloy construction for strength and reliability for both on and off-road performance. They have been engineered to maximize brake caliper clearance and mounting position to gain adequate suspension travel and steering angle. Each features a light rotating mass that improves rolling resistance, perfect for when adding larger, aggressive tread tires. Available in satin black and popular 17 and 20-inch sizes.

      Also available in Gunmetal, Black Machined, Bronze, Gloss Black, and Titanium finishes.

    Part TypeWheel
    Product LineICON Vehicle Dynamics Alloys Alpha Satin Black Wheels
    BrandICON VEHICLE DYNAMICS
    Package Height11.0
    Package Width22.0
    Package Length22.0
    Weight38.0 PG
    Part CategoryAccessories
    Wheel Size20x9
    Lug Nut Seat TypeConical
    Dot ApprovedYes
    QuantitySold Individually
    Wheel MaterialCast Aluminum
    Wheel FinishSatin Black
    Bolt Pattern8 x 6.5 in.
    Back Spacing5.75 in.
    Dot-ApprovedYes
    Offset0.748 in.
    Backspacing5.75 In.
    Center Bore Diameter125.2 mm
    Lug Hole Quantity8
    Center Cap IncludedYes
    Wheel Diameter20 in.
    Wheel Bolt Pattern8 x 6.50"
    Wheel TypeJeep/Truck/SUV Wheels
    Wheel Offset+19 mm
    Part FitmentUniversal
    Wheel Width9 in.
    Vendor Part NumberICNWH1220908057SB
    Package Qty1
    Package TypeEA
    Some parts are not legal for use in California or other states with similar laws / regulations
