Vehicle Info NeededICON VEHICLE DYNAMICSPART NUMBER: 504-218550DJ

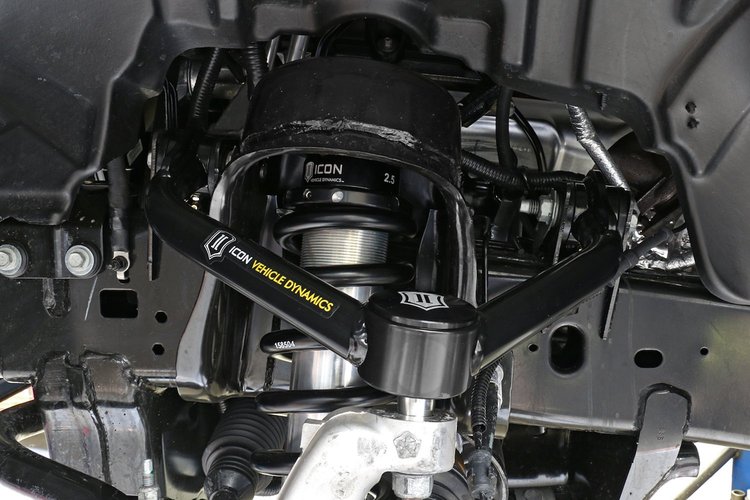

2009-UP RAM 1500 TUBULAR UCA W/ DELTA JOINT KIT
$87995
More than 10 available
Ships Today
Lowest Price GuaranteeRam
ICON Vehicle Dynamics 218550DJ Features:
- Take the performance of your 2009-UP Dodge RAM 1500 to new levels with the ICON Vehicle Dynamics Delta Joint tubular upper control arm kit. All ICON tubular upper control arms are constructed from CNC bent 1026 DOM steel tubing and then powder coated to a semi-gloss black finish for maximum strength and corrosion resistance. ICON upper control arms are engineered with built-in caster correction for optimal alignment specifications and confidence inspiring handling. A main benefit of ICON upper control arms is the potential for increased wheel travel when paired with our 2.5 series coilovers, this translates into superior performance and ride quality for your 2009-UP Dodge RAM 1500.
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels (2009-2018): ICON Alloys | 17x8.5 with 4.75" Backspace / 0mm Offset
- Recommended Aftermarket Wheels (2019-UP): ICON Alloys | 18x9" w/ 5.00" Backspace / 0mm Offset
- Recommended Aftermarket Wheels (2019-UP): ICON Alloys | 20x9" w/ 5.00" Backspace / 0mm Offset
- Recommended Aftermarket Tires (2009-2018): 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
- Recommended Aftermarket Tires (2019-UP): 35" x 12.50" (Fender trimming and modifications will be required.)
- TECH NOTE: Not compatible with models equipped with OE air suspension
- TECH NOTE: Not compatible with 2021-UP Ram 1500 TRX trims
- TECH NOTE: Also compatible with 2019-2022 Ram 1500 Classic models
- Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
- Add-On Part: 191011 - TUBULAR UCA BILLET CAP SET
- Service Parts: 614502 - 218550 REPLACEMENT BUSHING AND SLEEVE KIT
- Service Parts: 614519 - DELTA JOINT INSTALL PRESS ADAPTER TUBE
- Material: DOM Steel
- Adjustable: No
- Bushing Color: Black
- Bushing Material: Polyurethane
- Color: Black
- Finish: Powdercoated
- Ball Joint Included: Yes
- Quantity: Pair
- Control Arm Construction: Tubular
- ICON Delta Joint
- 1026 DOM Steel Construction
- CNC Bent Tubing
- Serviceable Dual Stage Bushings
- CNC Machined Bushing Housings and Sleeves
- Built-In Caster Correction
- Black Semi-Gloss Powder Coat Finish
- 2009-UP RAM 1500 TUBULAR UCA W/ DELTA JOINT KIT
Tubular Control Arms & Links for Maximum Suspension Movement and Travel
ICON Tubular Control Arms and Links enhance off-road suspension performance with improved clearance for upgraded shocks and coil-overs, offering increased travel and a lower profile than stock. Featuring built-in caster adjustment and ICON's exclusive Delta Joints for superior articulation, these heavy-duty arms are constructed from DOM tubing and finished with a durable multi-stage powder coat. The Tubular Link Arms also include PTFE-lined FK rod ends for maximum articulation and multi-durometer bushings for quiet operation. Available in upper and lower versions, they’re direct bolt-in replacements for various applications.
Part TypeControl Arm Kit
Product LineICON Vehicle Dynamics Tubular Control Arms & Links
BrandICON VEHICLE DYNAMICS
Package Height8.0
Package Width12.0
Package Length16.0
Weight23.0 PG
Part CategoryPerformance Parts
Part FitmentDirect Fit
Vendor Part Number218550DJ
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
