Vehicle Info NeededICON VEHICLE DYNAMICSPART NUMBER: 504-58550DJ

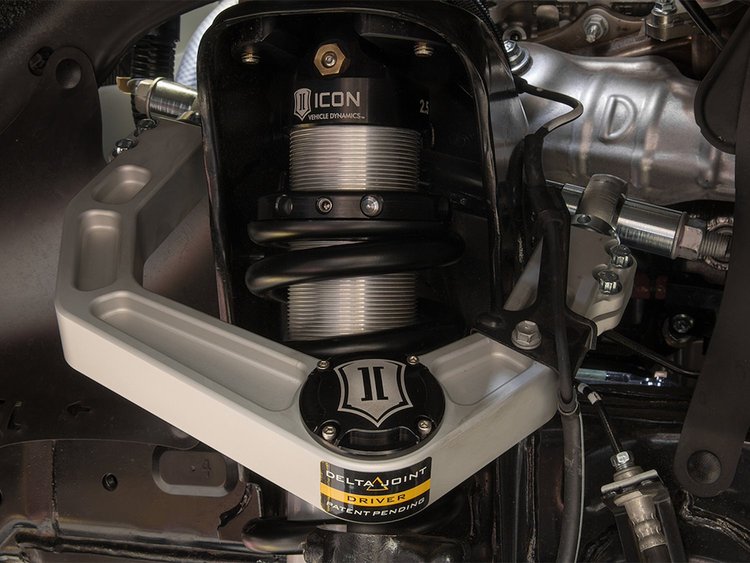

2005-UP TACOMA BILLET UCA DELTA JOINT KIT
$1,42995
More than 10 available
Ships on Nov 02, 2026
Lowest Price GuaranteeToyota
ICON Vehicle Dynamics 58550DJ Features:
- Take the performance of your 2005-UP Toyota Tacoma to new levels with the ICON Vehicle Dynamics Delta Joint billet aluminum upper control arm kit. All ICON billet upper control arms are constructed from CNC machined 6061 aluminum and then finished in a matte anodization process for maximum strength and corrosion resistance. ICON billet aluminum upper control arms feature quality PTFE-lined rod ends and machined adjuster sleeves that allow for on-vehicle alignment adjustment and precision caster and camber tuning. Another major benefit of ICON upper control arms is the potential for increased wheel travel when paired with our extended travel coilovers. The additional droop travel provided by these components translates into superior performance and ride quality for your 2005-UP Toyota Tacoma.
- Factory Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: 17" x 8.5" with max 4.75" back space
- Recommended Aftermarket Tires: 33" x 11.50"
- Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
- Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
- Service Parts: 614520 - DELTA JOINT INSTALL ADAPTER AND SHIM
- Material: Aluminum
- Adjustable: Yes
- Bushing Material: Rod End Bearing
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
- Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.75” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5” Backspace / 0mm Offset
- Color: Silver
- Finish: Anodized
- Ball Joint Included: Yes
- Quantity: Pair
- Control Arm Construction: Tubular
- ICON Delta Joint
- CNC Machined 6061 Billet Aluminum Construction
- Quality PTFE-lined ¾” FK Rod Ends
- On-Vehicle Adjustable For Quick And Precise Alignment
- Caster and Camber Adjustability Allows For Fine Tuning Of Vehicle Handling
- Matte Anodized Finish Provides Exceptional Corrosion Resistance
- O-ring Sealed Delta Joint Cover Cap For Additional Protection From The Elements
- 2005-UP TACOMA BILLET UCA DELTA JOINT KIT
Tubular Control Arms & Links for Maximum Suspension Movement and Travel
ICON Tubular Control Arms and Links enhance off-road suspension performance with improved clearance for upgraded shocks and coil-overs, offering increased travel and a lower profile than stock. Featuring built-in caster adjustment and ICON's exclusive Delta Joints for superior articulation, these heavy-duty arms are constructed from DOM tubing and finished with a durable multi-stage powder coat. The Tubular Link Arms also include PTFE-lined FK rod ends for maximum articulation and multi-durometer bushings for quiet operation. Available in upper and lower versions, they’re direct bolt-in replacements for various applications.
Part TypeControl Arm Kit
Product LineICON Vehicle Dynamics Tubular Control Arms & Links
BrandICON VEHICLE DYNAMICS
Package Height6.0
Package Width15.0
Package Length16.0
Weight17.0 PG
Part CategoryPerformance Parts
Part FitmentDirect Fit
Vendor Part Number58550DJ
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
