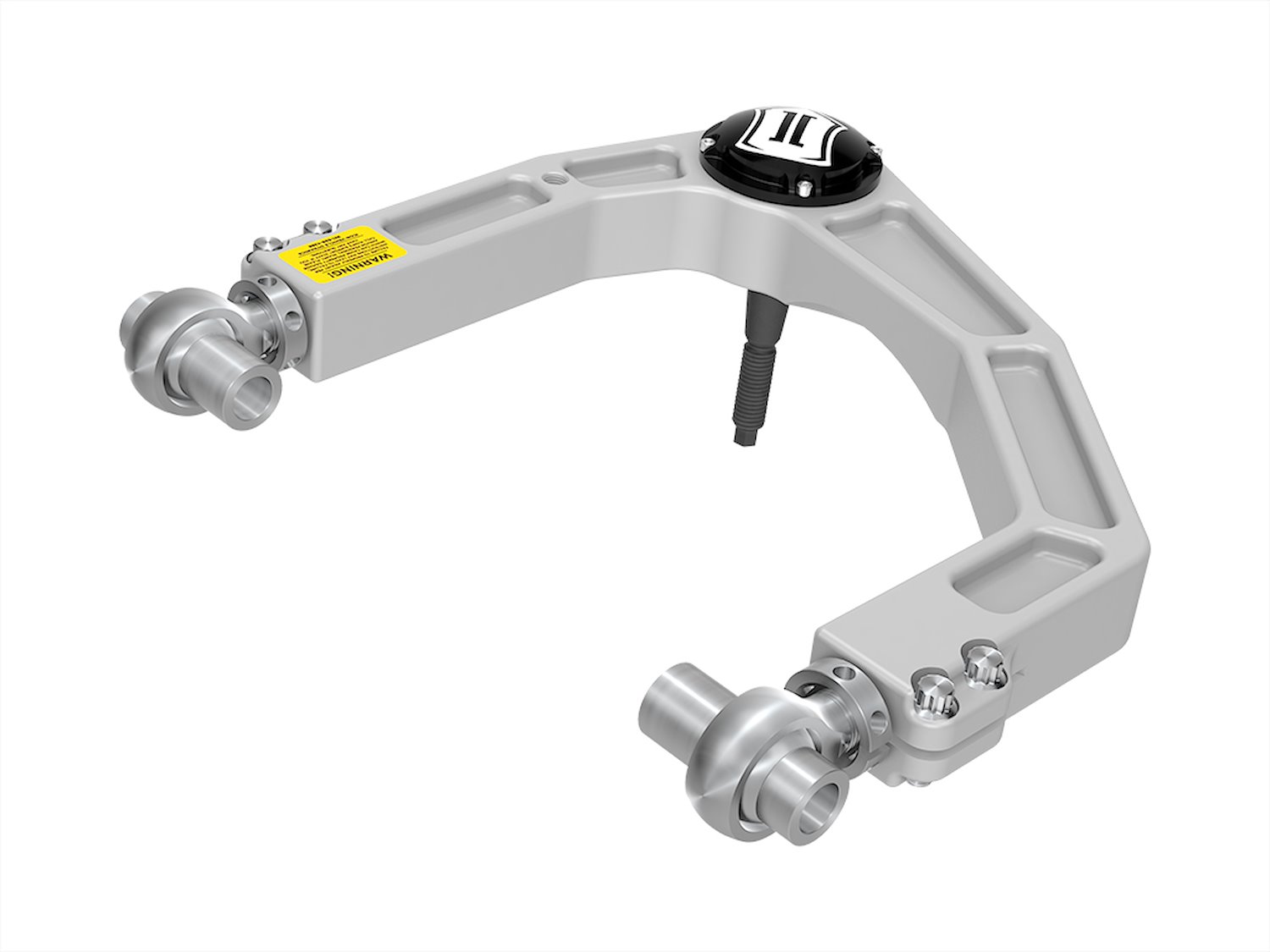

ICON Vehicle Dynamics 58561DJ Features:

This ICON billet aluminum upper control arm kit is designed to improve the overall performance of the new 2022-UP Toyota Tundra with corrected front-end geometry, increased camber and caster adjustment, and improved suspension component clearance. Constructed of CNC machined 6061 billet aluminum utilizing a hybrid H-beam cross-section that is light-weight and resists bending forces better than tubular arms. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. FK Rod End 3/4” heim joints provide precise and smooth function throughout the range of travel while ICON’s signature double adjuster sleeve allows for on-vehicle camber and caster adjustment. Included with all components and hardware necessary for a complete install, these billet UCAs are the perfect front end upgrade for the 2022-UP Toyota Tundra.
• Factory Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: 17" x 8.5" with 5.75" Backspace / 25mm Offset
• Recommended Aftermarket Tires: 35" x 12.50"
• TECH NOTE: Compatible with 0-3.5” of front lift over stock
• Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
• Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
• Adjustable: Yes
• Bushing Material: Rod End Bearing
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35" x 12.50"
• Recommended Aftermarket Wheels: 17x8.5" with 5.75” Backspace / 25mm Offset
• Finish: Anodized
• Ball Joint Included: Yes
• Control Arm Construction: Billet
• CNC machined 6061 billet aluminum construction with satin anodized finish
• Corrects suspension geometry and allows for proper wheel alignment on Tundras with up to 3” of lift
• Quick, precise, on-vehicle adjustment for both caster and camber
• Delta Joint PRO allows maximum articulation without binding
• Delta Joint PRO is 100% serviceable and rebuildable
• FK Rod Ends at chassis pivots for strength and precision driving characteristics
• Built in O-ring sealed dust cover cap

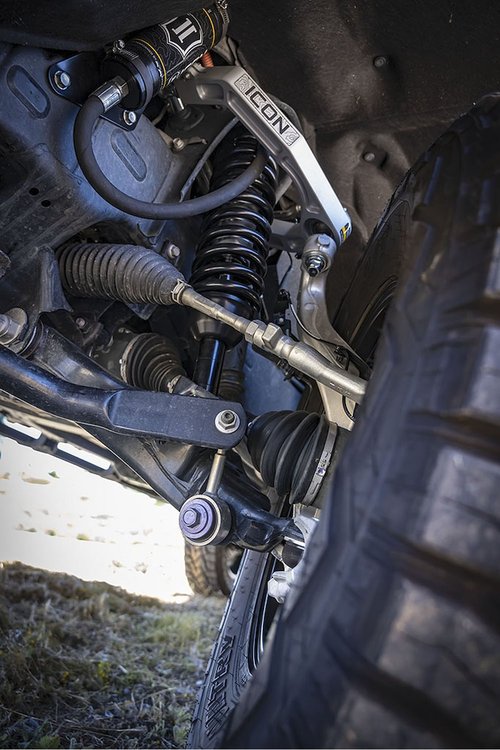

• 2022-UP TOYOTA TUNDRA BILLET UPPER CONTROL ARM WITH DELTA JOINT PRO KIT
