ICON Vehicle Dynamics 61720E Features:

ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2017-UP F-250 and F-350 trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off of ICON’s 2.5 VS Series shock line - meaning that features like ICON engineered coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-tuned as necessary. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.
• OE Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.00” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.25” Backspace / 6mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• TECH NOTE: Only compatible with 4WD models
• TECH NOTE: Springs are rated for diesel engines only
• TECH NOTE: Removal of the coil centering cup in factory coil bucket required for installation
• TECH NOTE: Also requires installation of IIC part number 93500 and CDEV rear shock part number 37705EP
• TECH NOTE: Connectivity for optional CDEV secondary front shocks in OE location in addition to CDEV coilovers coming soon!
• TECH NOTE: 2020-UP Super Duty models have a lower ride height from the factory than 2017-2019 models. This results in an increase of approximately .75" of additional lift height over ICON's advertised numbers.
• TECH NOTE: 2020-UP Super Duty sub-models equipped with Tremor package will have lift height range of 1.25-1.75” over stock
• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
• Add-On Part: 93500 - 15-UP F-150 & 17-UP FSD IIC INSTALL KIT
• Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
• Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
• Service Parts: 257337 - 7/8 SHAFT 11.25 OAL, 7.00 TRAVEL
• Material: Aluminum
• Material: Steel
• Shaft Diameter: 0.875 in
• Coil Over Springs Included: Yes
• Dust Shield: No
• Remote Reservoir: Yes
• Adjustable Damping: Electronically
• Damping Type: Oil
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.00” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.25” Backspace / 6mm Offset
• Spring Rate Type: Linear
• Gas Charged: Yes
• Upper Mount Type: Mounting Plate
• Bolt-in system fits in OE coil bucket location
• Ride height adjustable coilovers (2.5-3" or 3.25-3.75” depending on year of vehicle)

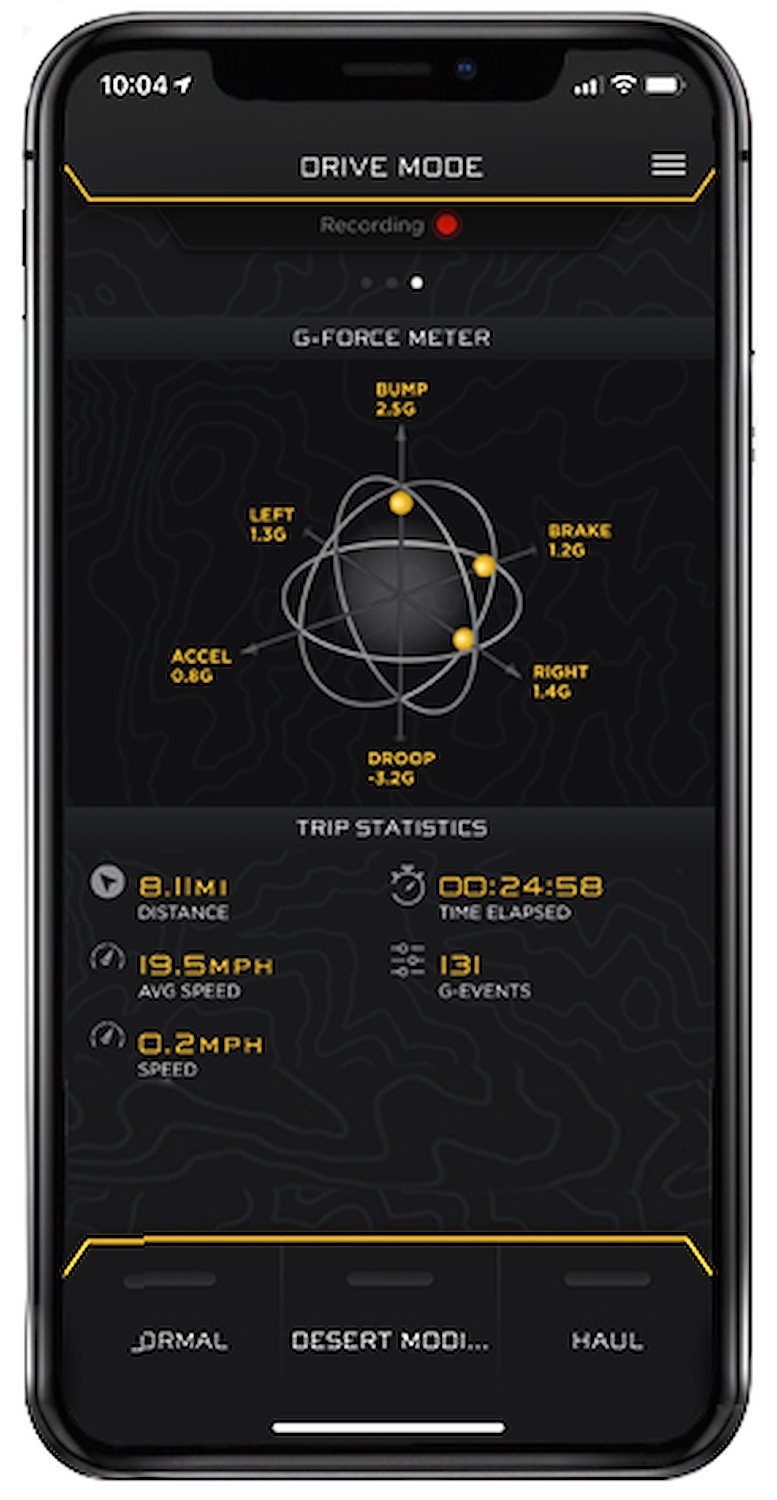

• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• Decreased body roll and improved on and off-road ride dynamics
• Vehicle-specific shock valving provides unparalleled ride quality and control
• Coilover conversion allows for addition of optional secondary shocks
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• ICON engineered coil springs guaranteed for life against sagging or breakage
• FK Rod End bearings for extended longevity and minimal deflection
• Fully rebuildable and re-tunable

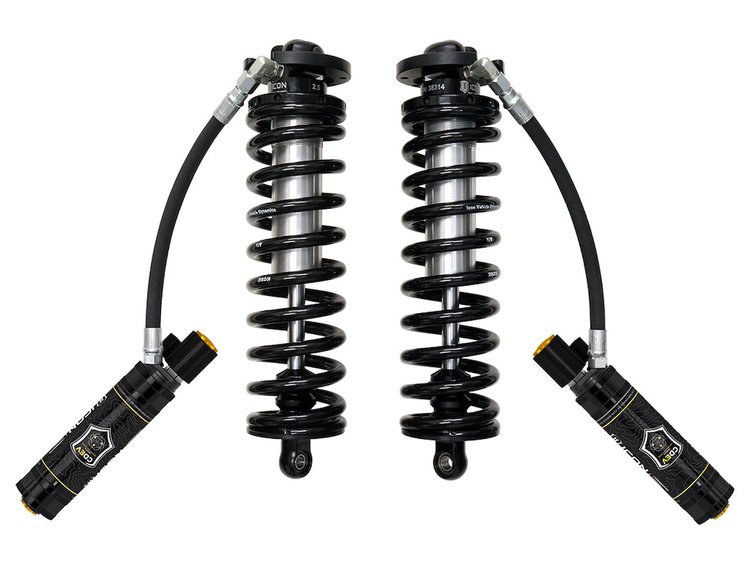

• 2017-UP FORD SUPER DUTY 4WD 2.5-3" LIFT 2.5 VS REMOTE RESERVOIR CDEV BOLT IN COILOVER CONVERSION KIT
