ICON's 64052 Front 4-Link Conversion is designed for the 2023-2026 Ford F-250, F-350 Super Duty 4WD as a stronger alternative to the factory hardware, with adjustability or geometry correction suited to lifted and off-road vehicles.

ICON Vehicle Dynamics 64052 Technical Specifications:

• 4-Link system maintains consistent caster angles through suspension travel for superior handling characteristics.
• Improves front end articulation and overall drivability.
• Allow on-vehicle caster adjustment via ICON double adjusters in lower links.

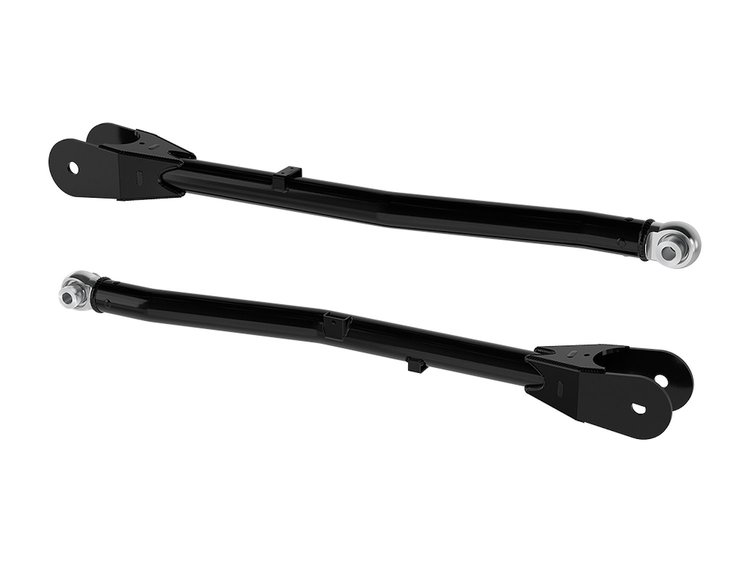

• Upper links are constructed from CNC machined 2 in. x .188 in. wall DOM steel tubing.
• PTFE lined FK spherical bearings eliminate deflection.
• Corrosion resistant semi-gloss black powder coat finish.

ICON Vehicle Dynamics 64052 Compatibility Notes:

• Factory Wheels & Tires Fitment: Yes.
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 in. w/5.00 in. Backspacing / 6mm Offset.
• Recommended Aftermarket Wheels: ICON Alloys - 18x9 in. w/5.25 in. Backspacing / 6mm Offset.
• Recommended Aftermarket Wheels: ICON Alloys - 20x9 in. w/5.25 in. Backspacing / 6mm Offset.
• Recommended Aftermarket Tires: Up to 37 in. x 12.50 in.
• Only fits 4WD models.
• Compatible with 2.5 in.-7 in. of front lift.
• Requires ICON 4-Link brackets, part number 64053, and ICON lower links, part number 164502, for complete installation.
