ICON Vehicle Dynamics 78600DJ Features:

Take the performance of your 2007-2016 GM 1500 truck to new levels with the ICON Vehicle Dynamics Delta Joint tubular upper control arm kit. All ICON tubular upper control arms are constructed from CNC bent 1026 DOM steel tubing and then powder coated to a semi-gloss black finish for maximum strength and corrosion resistance. ICON upper control arms are engineered with built-in caster correction for optimal alignment specifications and confidence inspiring handling. A main benefit of ICON upper control arms is the potential for increased wheel travel when paired with our 2.5 series coilovers, this translates into superior performance and ride quality for your 2007-2016 GM 1500.
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.75” Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5” Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5” Backspace / 0mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• TECH NOTE: Arm geometry is optimized for use with 1-3" of front lift over stock
• TECH NOTE: Only compatible with OE spindles. DO NOT install in combination with ANY aftermarket spindles.
• TECH NOTE: Small taper applications can be identified by their forged steel OE front lower control arms
• TECH NOTE: Not compatible with models equipped Magnetic Ride Control
• TECH NOTE: Not recommended for Hybrid models
• Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
• Add-On Part: 191011 - TUBULAR UCA BILLET CAP SET
• Service Parts: 614505 - 78600 / 78601 REPLACEMENT BUSHING AND SLEEVE KIT
• Service Parts: 614519 - DELTA JOINT INSTALL PRESS ADAPTER TUBE
• Material: DOM Steel
• Adjustable: No
• Bushing Color: Black
• Bushing Material: Polyurethane
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.75” Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5” Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5” Backspace / 0mm Offset
• Color: Black
• Finish: Powdercoated
• Ball Joint Included: Yes
• Control Arm Construction: Tubular
• ICON Delta Joint
• 1026 DOM Steel Construction
• CNC Bent Tubing
• Serviceable Dual Stage Bushings
• CNC Machined Bushing Housings and Sleeves
• Built-In Caster Correction
• Black Semi-Gloss Powder Coat Finish

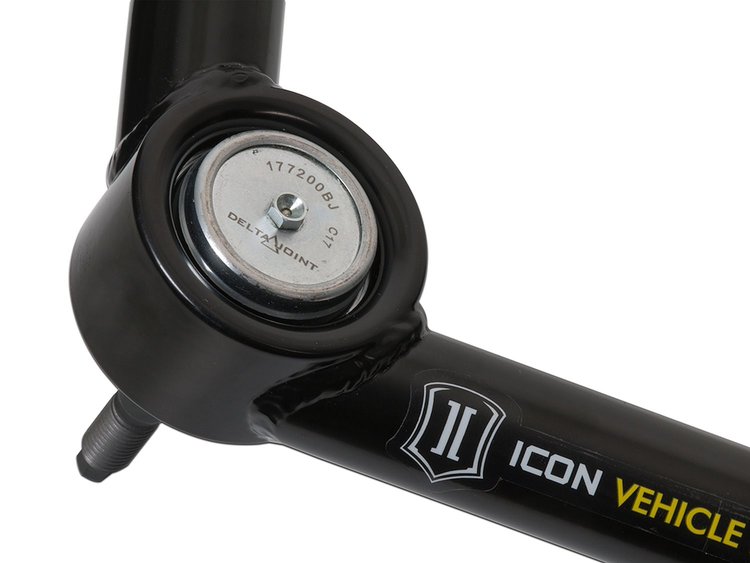

• 2007-2016 GM 1500 TUBULAR UCA DELTA JOINT KIT (SMALL TAPER)
