Vehicle Info NeededICON VEHICLE DYNAMICSPART NUMBER: 504-81521C

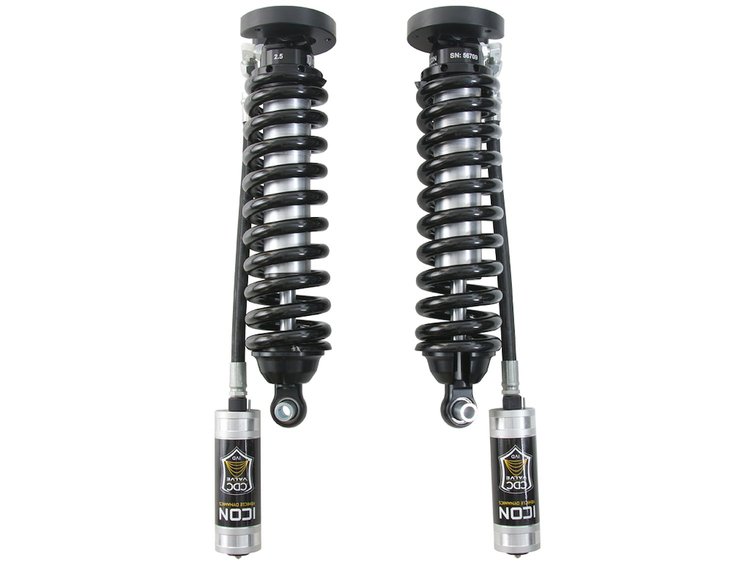

2016-UP TITAN XD 2.5 REMOTE RESERVOIR CDCV CO KIT
$2,35659
Ships on 09/10/2026
Lowest Price GuaranteeNissan
- TITAN XD COILOVERS
- Title: 16-UP TITAN XD 2.5 RR CDCV CO KIT
- Grade Type: Performance
- Spring Color: Black
- Spring Material: Steel
- Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
- Factory Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: 8.5" wide wheel with 5" backspace
- Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
- Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
- Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
- Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
- Service Parts: 257337 - 7/8 SHAFT 11.25 OAL, 7.00 TRAVEL
- Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
- Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
- Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
- Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
- Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
- Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
- Material: Aluminum
- Material: Steel
- Shaft Diameter: 0.875 in
- Coil Over Springs Included: Yes
- Dust Shield: No
- Remote Reservoir: Yes
- Adjustable Damping: Yes
- Damping Type: Oil
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
- Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.75” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5” Backspace / 0mm Offset
- Gas Charged: Yes
- Upper Mount Type: MOUNT PLATE
- 2016-UP TITAN XD 2.5 REMOTE RESERVOIR CDCV CO KIT
Part TypeCoil Spring Suspension Conversion Kit
BrandICON VEHICLE DYNAMICS
Package Height7.0
Package Width13.0
Package Length31.0
Weight70.0 PG
Part CategoryPerformance Parts
Part FitmentDirect Fit
Vendor Part Number81521C
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
