2015-UP FORD F-150 & 2017-UP FORD SUPERDUTY ICON INTELLIGENT CONTROL INSTALL KIT
InfoVehicle Info Needed
ICON VEHICLE DYNAMICSPART NUMBER: 504-93500

2015-UP FORD F-150 & 2017-UP FORD SUPERDUTY ICON INTELLIGENT CONTROL INSTALL KIT

$52622$619.09You Save$92.87
1 left in stock
ShippingShips on Nov 23, 2026
Lowest PriceLowest Price Guarantee

Ford
  • IIC INSTALL KIT
  • Title: 15-UP F-150 & 17-UP FSD IIC INSTALL KIT
  • Offers selectable active shock damping adjustment as well as manual adjustment of baseline settings without exiting vehicle


  • ICON Vehicle Dynamics 93500 Features:

      ICON Intelligent Control (IIC) is the computer that monitors, analyzes, and processes data in real-time. Information from the onboard G-force sensor and Gyroscope perform calculations based on algorithms and user-defined settings to predict terrain and wheel position. IIC has the capability to collect information at over 1000 times per second, process the data and make adjustments, then deliver those changes to Compression Damping Electronic Valve (CDEV) in the shock absorbers in under 40 milliseconds. IIC also works as a data driver to connect the user to ICON’s proprietary mobile App interface for monitoring and adjusting shock settings. The IIC is mounted to the 2017-UP Ford Super Duty and the 2015-UP Ford F-150 using application specific mounting brackets, hardware and wire harnesses, ensuring an easy and clean looking install.
    • TECH NOTE: Also requires installation of CDEV front and rear shock absorbers
    • TECH NOTE: IIC currently operates 4 CDEV equipped shocks, 2 fronts (coilover or OE location) and 2 rears. Connectivity for optional CDEV secondary front shocks in OE location in addition to CDEV coilovers coming soon!
    • Onboard sensors monitor G-forces and movement of vehicle chassis
    • Performs calculations based on sensor inputs, custom algorithms, and user defined settings at a rate of over 1000 times per second
    • Sends necessary damping adjustments to CDEV shocks that react in under 40 milliseconds

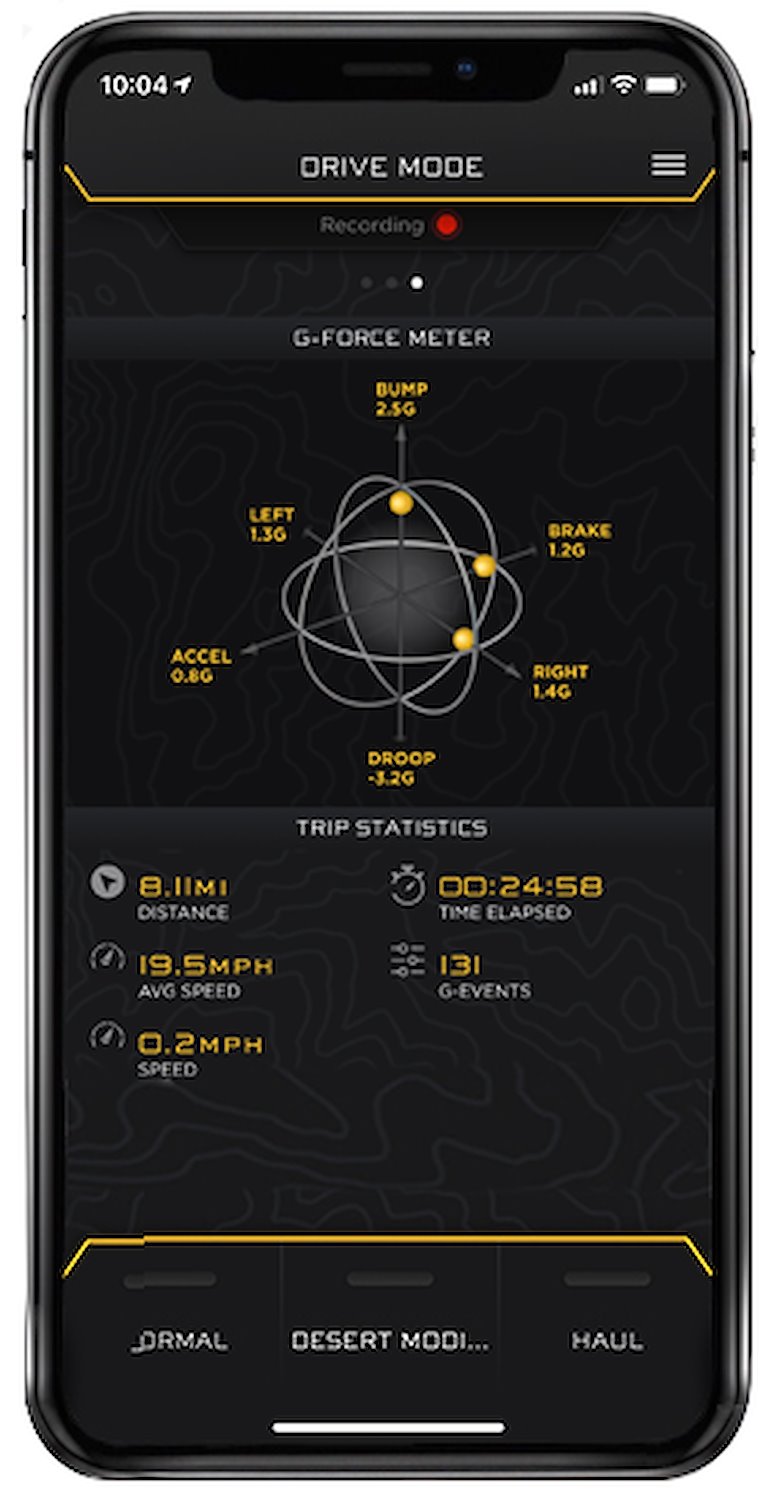

    • User interface provided by IIC Mobile App via Bluetooth connection to iOS device
    • Mobile app offers preconfigured “Drive Modes” as well as the ability to create custom presets
    • Also functions as a data logger for time, speed, distance, and G-force allowing you to record data from your trips

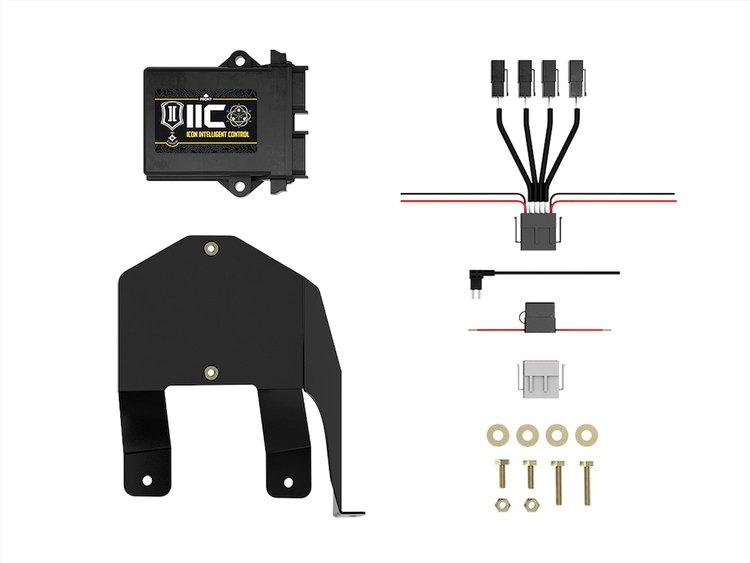

    • Application specific mounting brackets, hardware and wire harnesses
    • 2015-UP FORD F-150 & 2017-UP FORD SUPERDUTY ICON INTELLIGENT CONTROL INSTALL KIT

      Real-Time Shock Setting Adjustment for the Serious Off-Roader

      ICON Intelligent Control (IIC) Computer Module Kits monitor and process real-time data to make damping adjustments to your shock absorbers. These modules collect information at over 1,000X per second and then deliver changes directly to the Compression Damping Electronic Valve (CDEV). An IIC smartphone app provides a user-friendly interface for monitoring, recording, and adjusting the system’s performance via Bluetooth. Each kit includes vehicle-specific brackets, wiring, and hardware for installation.

    Part TypeVehicle Control Module
    Product LineICON Vehicle Dynamics Shock Absorber Intelligent Control Computer Module Kits
    BrandICON VEHICLE DYNAMICS
    Package Height5.0
    Package Width9.0
    Package Length19.0
    Weight4.0 PG
    Part CategoryPerformance Parts
    Part FitmentDirect Fit
    Vendor Part NumberICNSUS93500
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Some parts are not legal for use in California or other states with similar laws / regulations
