ICON Vehicle Dynamics 98502DJ Features:

Take the performance of your 2021 Ford F150 to new levels with the ICON Vehicle Dynamics Delta Joint tubular upper control arm kit. All ICON tubular upper control arms are constructed from CNC bent 1026 DOM steel tubing and then powder coated to a semi-gloss black finish for maximum strength and corrosion resistance. ICON upper control arms are engineered with built-in caster correction for optimal alignment specifications and confidence inspiring handling. A main benefit of ICON upper control arms is the potential for increased wheel travel when paired with our 2.5 series coilovers, this translates into superior performance and ride quality for your 2021 Ford F150.
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.625" Backspace / 16mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• TECH NOTE: Only compatible with OE spindles. DO NOT install in combination with ANY aftermarket spindles.
• TECH NOTE: Compatible with 1.75-3" of front lift over stock on most F-150 sub-models. Compatible with .25-1.25" of front lift over stock on F-150 Tremor.
• TECH NOTE: Not compatible with models equipped with Continuously Controlled Damping (CCD) system
• Add-On Part: 191011 - TUBULAR UCA BILLET CAP SET
• Service Parts: 614503 -98500 / 98501 / 98550 REPLACEMENT BUSHING AND SLEEVE KIT
• Service Parts: 614519 - DELTA JOINT INSTALL PRESS ADAPTER TUBE
• Service Parts: 614555 - 01-UP GM HD/15-UP COLORADO/14-18 GM1500(LARGE TAPER) DELTA JOINT KIT
• Material: DOM Steel
• Adjustable: NO
• Bushing Color: Black
• Bushing Material: Polyurethane
• Greaseable: yes
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.625" Backspace / 16mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5” Backspace / 6mm Offset
• Color: Black
• Finish: Powdercoat
• Ball Joint Included: Yes
• Control Arm Construction: Upper
• Grease Fittings Included: Yes
• ICON Delta Joint
• 1026 DOM Steel Construction
• CNC Bent Tubing
• Serviceable Dual Stage Bushings
• CNC Machined Bushing Housings and Sleeves
• Built-In Caster Correction
• Black Semi-Gloss Powder Coat Finish

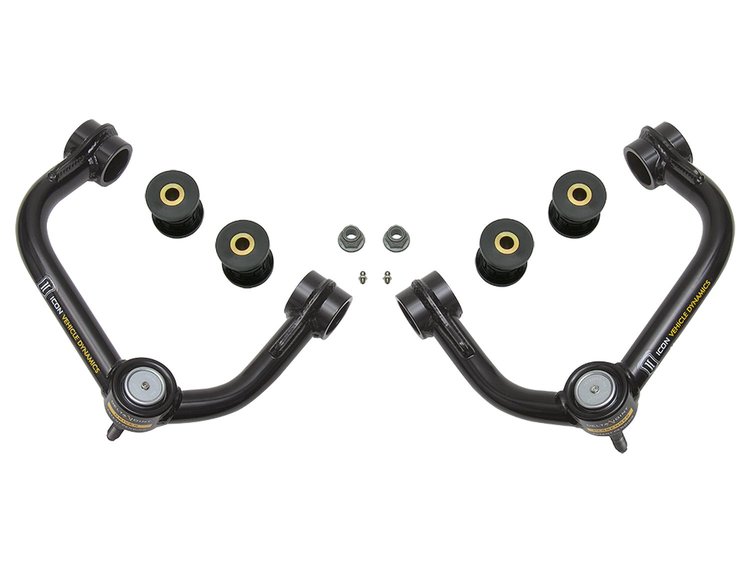

• 2021 FORD F150 TUBULAR UCA DELTA JOINT KIT
