ICON Vehicle Dynamics 98505DJ Features:

Take the performance of your 2004-2020 Ford F150 to new levels with the ICON Vehicle Dynamics Delta Joint billet aluminum upper control arm kit. These upper control arms are designed to improve the overall performance of the F150 with corrected front end geometry, adjustable camber and caster, and improved suspension component clearance. Constructed of CNC machined 6061 billet aluminum, these control arms merge lightweight construction with high strength properties for a product that functions just as well as it looks. Replacing the OE ball joint with the included ICON Delta Joint allows for full bump and droop travel of the front suspension while eliminating bind. FK Rod End heim joints provide precise and smooth function throughout the range of travel while ICON’s signature double adjuster sleeve allows for on-vehicle camber and caster adjustment. Included with all components and hardware necessary for a complete install, these billet UCAs are the perfect upgrade for the 2004-2020 Ford F150.
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.625" Backspace / 16mm Offset
• TECH NOTE: NOT compatible with Continuous Control Damping (CCD) equipped Expeditions
• Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
• Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
• Service Parts: 614520 - DELTA JOINT INSTALL ADAPTER AND SHIM
• Service Parts: 614554 - 04-UP F150/09-UP RAM 1500 DELTA JOINT KIT
• Bushing Material: Rod End Bearing
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.625" Backspace / 16mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5” Backspace / 6mm Offset
• Finish: Anodized
• Ball Joint Included: Yes
• Control Arm Construction: Billet
• CNC machined 6061 billet aluminum upper control arms allow for on-vehicle camber and caster adjustment
• ICON upper control arms allow for additional wheel travel while improving suspension geometry for predictable handling
• Direct bolt-in design makes for a simple and straightforward installation
• Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball
• Delta Joint upper control arms carry ICON's exclusive 5 year limited warranty

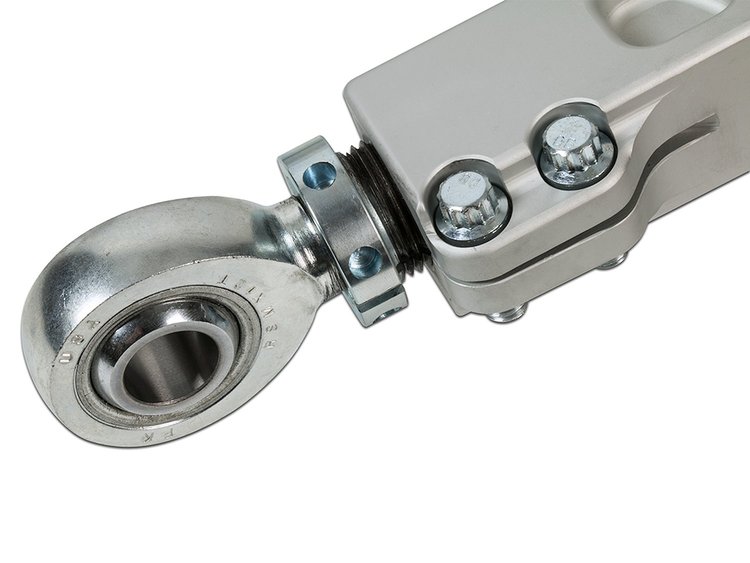

• 2004-2020 FORD F150 BILLET UCA DELTA JOINT KIT
