ICON Vehicle Dynamics 98520DJ Features:

This ICON billet aluminum upper control arm kit is designed to improve the overall performance of the 2019-UP Ford Ranger with corrected front-end geometry, adjustable camber and caster, and improved suspension component clearance. These are constructed of CNC machined 6061 billet aluminum merging light weight with high strength properties. Replacing the OE ball joint with the ICON Delta Joint allows for full bump and droop travel of the front suspension while eliminating bind. FK Rod End 7/8” heim joints provide precise and smooth function throughout the range of travel while ICON’s signature double adjuster sleeve allows for on-vehicle camber and caster adjustment. Included with all components and hardware necessary for a complete install, these billet UCAs are the perfect upgrade for the 2019-UP Ford Ranger truck.
• TECH NOTE: Compatible with 2019-Up Rangers equipped with aluminum knuckles only
• Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
• Add-On Part: 191011 - TUBULAR UCA BILLET CAP SET
• Service Parts: 614519 - DELTA JOINT INSTALL PRESS ADAPTER TUBE
• Adjustable: Yes
• Bushing Material: Rod End Bearing
• Finish: Anodized
• Ball Joint Included: Yes
• Control Arm Construction: Billet
• CNC machined 6061 billet aluminum construction for light weight and exceptional strength
• Features ICON's Patented Delta Joint (U.S. Patent No. 10,731,700)
• Camber and caster adjustability allows for precise wheel alignment
• ICON double adjuster sleeves allow for on-vehicle adjustment
• Vehicle specific taper pin provides OE-like fitment
• PTFE Lined 7/8” FK Rod Ends for improved response
• Built in o-ring sealed dust cover cap

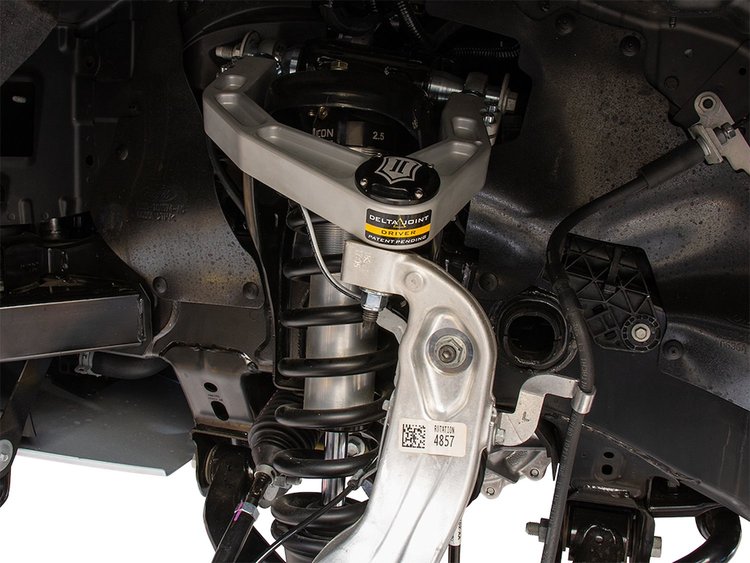

• 2019-UP FORD RANGER BILLET UCA DELTA JOINT KIT
