ICON Vehicle Dynamics K213103 Features:

With several changes being made to the 2019 RAM 1500 platform including an all-new frame, increased chassis rigidity, and a lighter overall weight, ICON’s R&D department went above and beyond to make sure the new RAM truck was properly analyzed. With these changes made by the factory, the development of new ICON rear shocks (and revised front coilover tuning) was necessary to optimize fitment and performance on this new platform.
• OEM Wheels & Tires Fitment: Yes
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• APPLICATION NOTE #99: AIR BAGS RECOMMENDED WITH PERFORMANCE REAR SPRINGS IF VEHICLE USED FOR TOWING
• APPLICATION NOTE #100: SPRINGS NOT RATED FOR ECO DIESEL EQUIPPED TRUCKS
• APPLICATION NOTE #105: NOT FOR VEHICLES WITH REAR FACTORY AIR RIDE
• Ships in Multiple Boxes
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
• TECH NOTE: 2019-Up Ram Rebel lift height range 0-.75" over stock (front) and 1" over stock (rear)
• TECH NOTE: Not compatible with 2019-2022 Ram 1500 Classic models
• TECH NOTE: Not compatible with 2021-UP Ram 1500 TRX trim
• Spring Color: Black
• Spring Material: Steel
• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
• Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5" Backspace / 0mm Offset
• Shocks Included: Yes
• Adjustable coilovers from 0-1.5" of lift height allow for fitment of larger and more aggressive tires
• ICON 2.5 Series shocks feature vehicle specific tune for superior performance and ride quality
• 1.5" lift, dual rate rear coil springs offer incredible ride quality and increased suspension performance
• Corrosion resistant CAD plated coilover shock bodies with 7/8? shafts
• Rear 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• FK rod end bearings for extended longevity and minimal deflection
• Fits 2WD & 4WD applications
• 6061 Aircraft grade aluminum CNC machined components
• Shocks are fully rebuildable and revalvable
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install

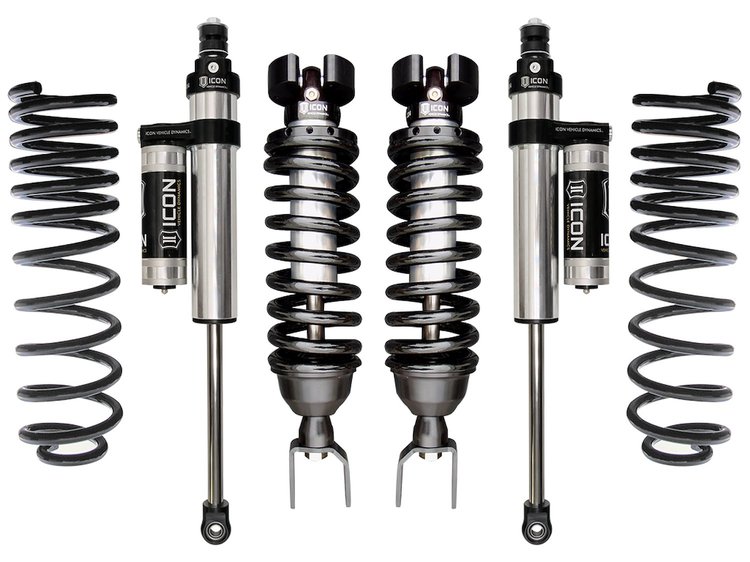

• 2019-UP RAM 1500 4WD 0-1.5" LIFT STAGE 3 SUSPENSION SYSTEM
