ICON Vehicle Dynamics K214523 Features:

ICON Vehicle Dynamics suspension systems for the 2014-2018 Ram 2500 4WD were designed with exceptional performance and ride quality in mind. This Stage 3 system includes ICON-engineered 4.5” dual rate coil springs, high-strength laser cut bracketry, billet bump stop spacers, fabricated rear coil spacers, and all hardware necessary for a complete install. Vehicle-specific ICON 2.5 Aluminum Series remote reservoir shocks help deliver balanced performance front to rear, while CDC (Compression Damping Control) Valve technology allows the user to adjust compression characteristics of the shocks with the turn of a knob. These features make this Stage 3 system a huge upgrade for 2014-2018 Ram 2500 4WD trucks that are not only used for daily driving and towing, but spirited off-road driving as well.
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.25” Backspace / 13mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.50" Backspace / 12mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.50" Backspace / 12mm Offset
• Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
• APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• APPLICATION NOTE #90: MAY NOT BE COMPATIBLE WITH OTHER MANUFACTURERS AFTERMARKET TRACKBARS
• APPLICATION NOTE #103: VEHICLES EQUIPPED WITH 2 PIECE DRIVESHAFTS REQUIRE CARRIER SHIM KIT 214211
• APPLICATION NOTE #105: NOT FOR VEHICLES WITH REAR FACTORY AIR RIDE
• Ships in Multiple Boxes
• Spring Color: Black
• Spring Material: Steel
• Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
• Add-On Part: 216520 - 09-UP RAM HD 2.0 STEERING STABILIZER
• Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
• Add-On Part: 214211 - 14-UP RAM HD 1.75" CARRIER BEARING DROP KIT
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.25” BS / 13mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.50" BS / 12mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.50" BS / 12mm Offset
• Dual Rate Coil Springs: Yes
• Shocks Included: Yes
• Increased wheel travel and ride quality over stock with no change in towing capacity
• Decreased body roll
• Level stance from front to rear of vehicle
• ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
• Vehicle specific tuned front and rear 2.5 Series shocks provide superior damping and ride quality
• 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish

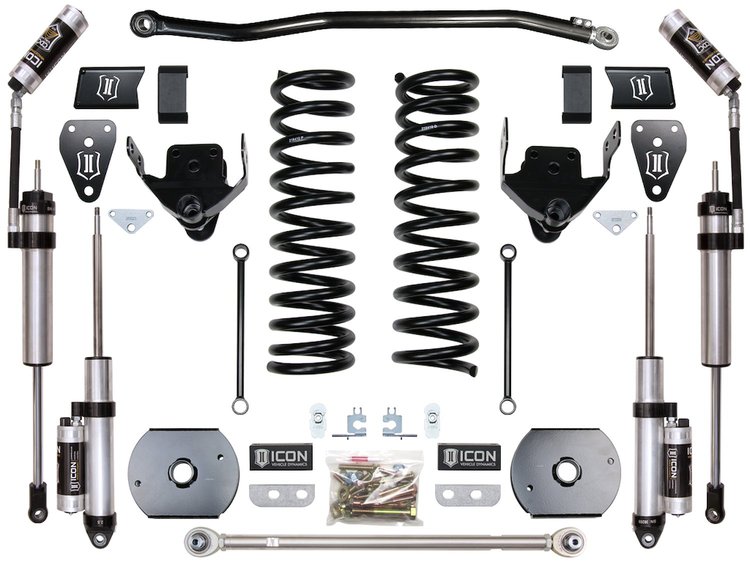

• 2014-2018 DODGE RAM 2500 4WD 4.5" LIFT STAGE 3 SUSPENSION SYSTEM
