ICON Vehicle Dynamics K22017 Features:

The ICON Vehicle Dynamics Stage 7 2.5" Suspension System for the 2018-UP Jeep Wrangler JL is designed for the driver looking to drastically improve the performance and ride quality of their vehicle. This Stage 7 system includes 2.5" lift dual rate coil springs, upgraded 2.5 Aluminum Series remote reservoir shocks with vehicle specific valving, tubular steel adjustable front upper links, fixed front lower links, fixed rear upper links, adjustable rear lower links, adjustable front and rear track bars, bump stop spacers, sway bar links, and all necessary hardware to complete the installation. With this combination of components, ICON was able to increase wheel travel numbers by over 30% (3" front, 2" rear), redefining the potential of the 2018-UP JL. The Stage 7 system allows for fitment of 35" tires when used with ICON's recommended wheel specifications. For users looking to install 37" tires, an optional bump stop spacer kit (PN: 22029) is available.
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.5” Backspace / -6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 4.5” Backspace / -12mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit PN: 22029)
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• APPLICATION NOTE #66: 2 DOOR MODELS SIT SLIGHTLY HIGHER THAN 4 DOOR MODELS BUT REMAIN LEVEL WHEN INSTALLED
• TECH NOTE: Only compatible with models equipped with 3.6L V6 Pentastar engine. Not compatible with 3.6L V6 eTorque engine.
• Ships In Multiple Boxes
• Spring Color: Black
• Spring Material: Steel
• Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
• Add-On Part: 22038 - 18-UP JL/20-UP JT 2.0 CENTERLINE STABILIZER KIT
• Add-On Part: 22042 - 20-UP JT / 18-UP JL / 07-18 JK FRONT HYD BUMP STOP KIT
• Add-On Part: 22061 - 18-UP JL/20-UP JT FRONT SWAY BAR LINK KIT
• Add-On Part: 22029 - 18-UP JL EXTENDED BUMP STOP SPACER KIT
• Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit part # 22029)
• Recommended Aftermarket Wheels: (Non-Rubicon) ICON Alloys | 17x8.5 w/ 4.5" Backspace / -6mm Offset
• Recommended Aftermarket Wheels: (Non-Rubicon) ICON Alloys | 18x9 w/ 4.5" Backspace / -12mm Offset
• Recommended Aftermarket Wheels: (Non-Rubicon) ICON Alloys | 20x9 w/ 4.5" Backspace / -12mm Offset
• Recommended Aftermarket Wheels: (Rubicon) ICON Alloys | 17x8.5 w/ 4.75" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: (Rubicon) ICON Alloys | 18x9 w/ 4.5" Backspace / -12mm Offset
• Recommended Aftermarket Wheels: (Rubicon) ICON Alloys | 20x9 w/ 4.5" Backspace / -12mm Offset
• Shocks Included: Yes
• 2.5" lift height
• Fits 35" tires (37" with optional bump stop spacer kit PN: 22029)
• 3" front, 2" rear increase in wheel travel
• Improves on and off-road ride quality over stock
• Dual rate coil springs with lifetime guarantee against sagging/breakage
• 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Tubular steel link arms with dual durometer bushings for noise free performance, maximum articulation, and minimal bind
• 100% bolt-on system makes for an easy install
• “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability

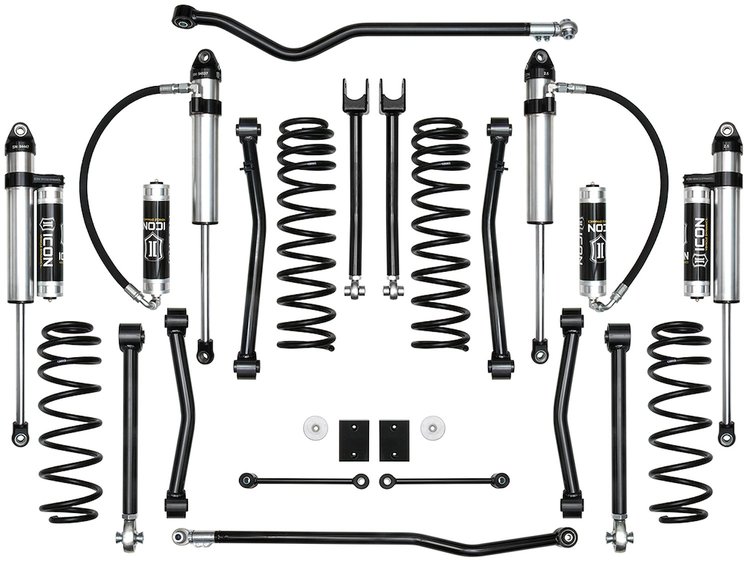

• 2018-UP JEEP JL 2.5" LIFT STAGE 7 SUSPENSION SYSTEM
