ICON Vehicle Dynamics K22103 Features:

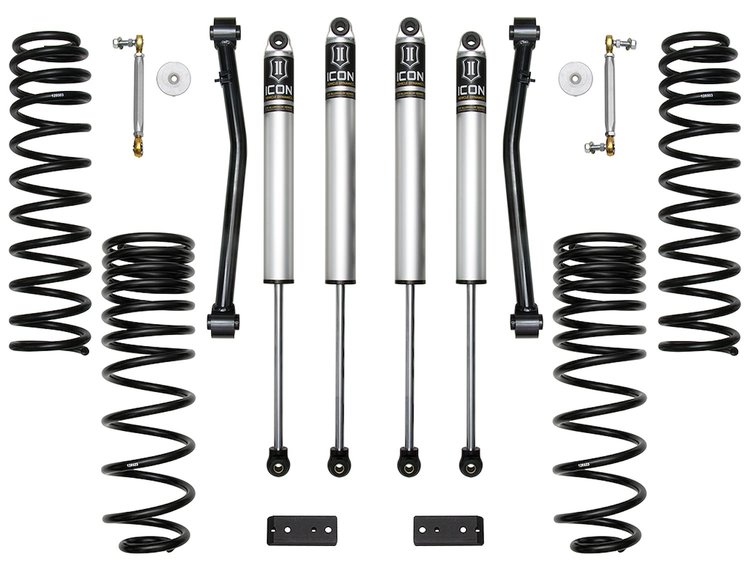

The Stage 3 ICON 2.5” Suspension System for the Jeep Gladiator is the ideal setup for significantly improving on-road ride quality for the daily driven application that will see occasional moderate off-road use. This complete suspension system features 2.0 Aluminum Series shocks, 2.5” lift dual-rate front coil springs, a tubular steel fixed front lower link kit, billet front sway bar links, a triple-rate rear coil spring kit, a rear sway bar relocation kit, and all necessary hardware for install. This system provides an increase of over 30% front and 20% rear wheel travel and was designed around the use of a 35” tire. For those looking to run a 37” tire this can be achieved with the ICON Jeep JT Bump Stop Spacer Kit (Part #22071).
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.5” Backspace / -6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 4.5” Backspace / -12mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit PN: 22071)
• APPLICATION NOTE #30: AN ADJUSTABLE TRACK BAR MAY BE NEEDED TO REALIGN THE AXLE FROM LEFT TO RIGHT, OR TO ADD ADDITIONAL STRENGTH
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• APPLICATION NOTE #127: WILL NOT FIT GLADIATOR MOJAVE TRIM
• TECH NOTE: Diesel models will net approx. 1.75" of front lift over stock due to their heavier weight.
• Ships In Multiple Boxes
• Spring Color: Black
• Spring Material: Steel
• Add-On Part: 22071 - 20-UP JT EXTENDED BUMP STOP SPACER KIT
• Add-On Part: 22042 - 20-UP JT / 18-UP JL / 07-18 JK FRONT HYD BUMP STOP KIT
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit part # 22071)
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5 w/ 4.5" Backspace / -6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 18x9 w/ 4.5" Backspace / -12mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20x9 w/ 4.5" Backspace / -12mm Offset
• Shocks Included: Yes
• 2.5" lift height
• Fits 35" tires (37" with extended bump stop spacer kit)
• 33% front, 23% rear increase in wheel travel
• Improves on and off-road ride quality over stock
• Front lower links included for caster angle correction and improved front end articualtion
• Dual rate front coil springs with lifetime guarantee against sagging/breakage
• Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
• 2.0 Aluminum Series shocks with vehicle specific valving
• Adjustable, billet aluminum front sway bar links
• 100% bolt-on system makes for an easy install
• “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• 2020-UP JEEP GLADIATOR JT 2.5" STAGE 3 SUSPENSION SYSTEM
