ICON K24004 Features:

ICON Vehicle Dynamics K24004 Features:

ICON’s 4.5” Jeep JK Performance Suspension Systems aims to strike a perfect balance between wheel travel, articulation, ground clearance, and precise on and off-road handling characteristics. With these goals met, ICON-equipped JK’s can take on rolling desert whoops, crawl over obstacle-riddled trails, and drive back home in comfort all in the same day. One of the major benefits of the ICON 4.5” JK system (or any ICON system) is that they are comprehensive suspension solutions, not just “lift kits”. As a complete manufacturer ICON is able to engineer & create shock absorbers, coil springs, link arms, track bars, and all associated parts to work in conjunction with each other and extract maximum performance out of the Jeep JK.
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.5” Backspace / -6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 4.5” Backspace / -12mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (Larger 37" tire packages will fit with minor modifications or aftermarket high clearance fenders, test fitment recommended)
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• APPLICATION NOTE #62: FRONT DRIVESHAFT CAN HIT CERTAIN MODEL SKID PLATES AT FULL DROOP AND MAY NEED TO BE TRIMMED FOR FULL ARTICULATION
• APPLICATION NOTE #66: 2 DOOR MODELS SIT SLIGHTLY HIGHER THAN 4 DOOR MODELS BUT REMAIN LEVEL WHEN INSTALLED
• APPLICATION NOTE #80: FRONT DRIVE SHAFT REQUIRED FOR PROPER FRONT DRIVELINE CLEARANCE (ICON PART #22014 [12-UP] / #22016 [07-11]
• APPLICATION NOTE #123: MAY REQUIRE REAR ALIGNMENT CAM KIT
• Ships In Multiple Boxes
• Spring Color: Black
• Spring Material: Steel
• Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
• Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
• Add-On Part: 22020 - 07-18 JK 2.0 CENTERLINE STABILIZER KIT, ADJUSTABLE
• Add-On Part: 22039 - 07-18 JK 2.0 CENTERLINE STABILIZER KIT
• Add-On Part: 22014 - 12-18 JK FRONT DRIVESHAFT W/YOKE ADAPTER 2.5-6" LIFT
• Add-On Part: 22016 - 07-11 JK FRONT DRIVESHAFT W/YOKE ADAPTER 2.5-6" LIFT
• Add-On Part: 22013 - 07-18 JK CASTER CAM KIT
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35" x 12.50" (Larger 37" tire packages will fit with minor modifications or aftermarket high clearance fenders, test fitment recommended)
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5 w/ 4.5" Backspace / -6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 18x9 w/ 4.5" Backspace / -12mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20x9 w/ 4.5" Backspace / -12mm Offset
• Dual Rate Coil Springs: Yes
• Shocks Included: Yes
• Dual-rate coil springs front and rear guaranteed never to sag
• High-steer flip kit for proper steering geometry without a drop pitman arm and increased ground clearance over stock
• Stainless steel high-steer taper adapter eliminates drilling the factory knuckle
• All links and track bars utilize dual-rate bushings or PTFE-lined rod ends for tuned vibration isolation, controlled deflection, with maximum articulation and responsiveness
• Track bars are on vehicle adjustable designed for optimizing axle position
• Includes high-performance rebuildable and revalvable reservoir 2.5 Aluminum Series shocks w/ CDCV
• Easy to operate compression adjuster for user shock tune-ability front and rear
• Increased wheel travel and articulation over stock
• No welding or cutting required
• 100% returnable to stock

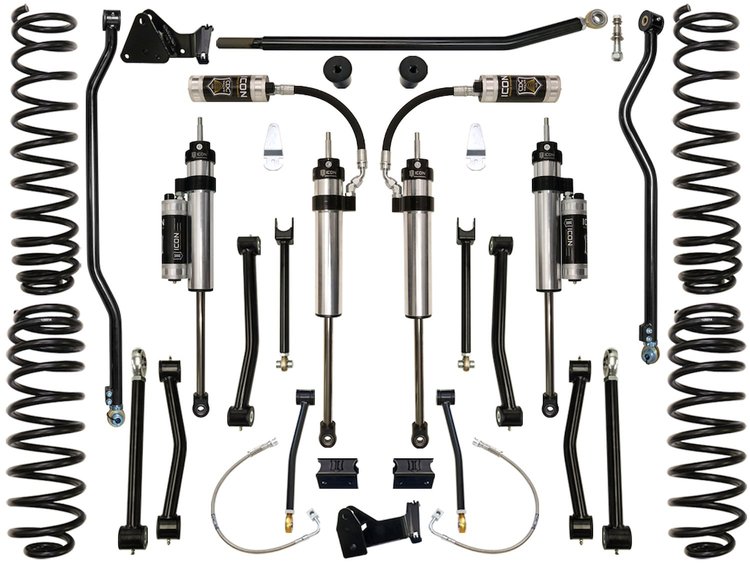

• 2007-2018 JEEP JK 4.5" LIFT STAGE 4 SUSPENSION SYSTEM
