ICON Vehicle Dynamics K26011 Features:

The 2010-2015 Jeep Grand Cherokee (WK2) is a surprisingly capable vehicle that can easily serve double-duty as both a refined daily driver and a trail-ready weekend warrior. ICON engineers developed the 0-2” Suspension System to offer increased wheel travel, decreased body roll, and a more confidence-inspiring ride characteristic. The mild lift that this system provides also allows for the fitment of larger wheel and tire combinations that will increase ground clearance – a big plus for those taking their Grand Cherokee off the beaten path. ICON has developed a vehicle-specific valving for 2.5 Series coilovers and 2.5 Aluminum Series rear shocks featured in this kit, which translates into an excellent ride across almost any terrain. These components are also 100% rebuildable and revalveable, which means they are the last set of shocks that will ever need to be installed on the vehicle. The ICON Vehicle Dynamics Jeep Grand Cherokee (WK2) Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their SUV on the road as well as in the dirt.
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: 8.5" Wide Wheel with 4.75” Backspace
• Recommended Aftermarket Tires: 32" x 10.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• APPLICATION NOTE #69: REAR SHOCKS USE FACTORY UPPER HARDWARE. IF YOU DO NOT HAVE THE LARGER OF THE 2 AVAILABLE STOCK SHOCKS YOU WILL NEED TO PURCHASE THIS FROM THE DEALER.
• APPLICATION NOTE #74: HARD MOUNTED COILOVERS WILL INCREASE ROAD NOISE TRANSFERRED TO THE CABIN
• APPLICATION NOTE #93: INCREASED CABIN NOISE FROM ICON SHOCK INSTALLATION ON UNIBODY VEHICLE.
• APPLICATION NOTE #96: RIDE HEIGHTS FOR STOCK EQUIPPED VEHICLE. VEHICLES WITH BUMPERS/WINCHES/ETC…SHOULD INCREASE TO LARGER SPRING RATE
• Spring Color: Black
• Spring Material: Steel
• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
• Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 32" x 10.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.75” Backspace / 0mm Offset
• Dual Rate Coil Springs: NO
• Shocks Included: Yes
• Increased wheel travel and ride quality over stock
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• 2.5" body front and rear IFP shocks with 7/8" shaft
• Adjustable coilovers from 0-2" of lift height
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• FK rod end bearings for extended longevity and minimal deflection
• 100% Bolt-on system - no drilling, or welding necessary for installed

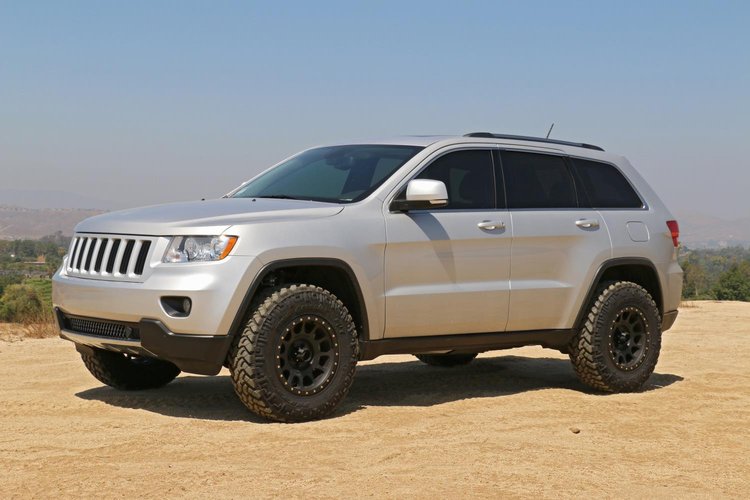

• 2010-2015 JEEP GRAND CHEROKEE 0-2" LIFT SUSPENSION SYSTEM
