ICON Vehicle Dynamics K53057 Features:

ICON’s 2003-2009 Toyota 4Runner/2007-2009 FJ Cruiser Stage 7 suspension system provides the ultimate level of on and off-road performance of the vehicle. This system includes all of the components featured in the Stage 6 setup – ICON billet aluminum Delta Joint upper control arm kit, 2.5 Series Remote Reservoir front coilovers and 2.5 Aluminum Series rear shocks, 2” rear coil springs, adjustable rear track bar, and a billet aluminum rear upper and lower link arm kit - but sees the addition of ICON's Compression Damping Control Valve (CDCV) front and rear. The easy-to-adjust CDC Valve allows for end-user compression changes to provide optimal ride quality across all types of terrain and vehicle cargo configurations. The remote reservoir design allows for increased shock oil volume and enhanced cooling so that the rear of the vehicle can work harder for longer durations without noticeable “fade” occurring. The 2.5 Aluminum Series Remote Reservoir rear shocks also feature ICON’s “Bump Zone” technology which significantly increases damping ability in the last 2” of compression travel, preventing harsh bottom-out sensation and giving the vehicle a much more controlled ride quality over varying terrain. ICON's billet aluminum links are much stronger than the OE units, feature a greaseable dual stage bushing, and can be adjusted for optimal pinion angle. On top of it all, these links have been designed to provide correct roll steer geometry for the best possible handling on and off-road.
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.75” Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.00” Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.00” Backspace / 0mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #35: REMOTE RESERVOIR MOUNTING BRACKETS MAY INTERFERE WITH AFTERMARKET BUMPER MOUNTS / WINDSHIELD WASHER BOTTLES
• APPLICATION NOTE #47: 700LB/IN EXPEDITION COIL AVAILABLE FOR HEAVIER EQUIPPED VEHICLES
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• Ships in multiple boxes
• Spring Color: Black
• Spring Material: Steel
• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
• Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
• Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
• Add-On Part: 56100 - 07-UP FJ/03-UP 4 RUNNER REAR SHIN GUARDS
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.75” Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5” Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5” Backspace / 0mm Offset
• Spring Rate: 650 ppi
• Shocks Included: Yes
• Increased wheel travel and ride quality over stock
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• CDC Valve technology allows for quick and easy compression damping adjustment without the need for tools
• Adjustable coilovers provide 0-3.5" of front lift height
• Extended Travel remote reservoir coilovers matched with ICON UCAs provide increased front droop travel
• Billet Aluminum rear upper and lower links offer on vehicle pinion angle adjustment
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Adjustable rear track bar proper rear axle placement under vehicle
• Bolt-on system means no cutting or welding necessary for install

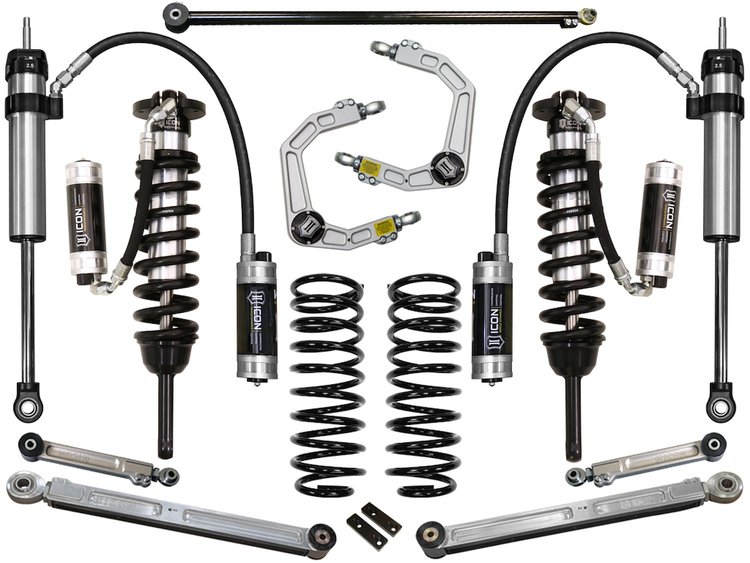

• 03-09 4RUNNER/2007-2009 FJ CRUISER 0-3.5" STAGE 7 SUSPENSION SYSTEM W BILLET UCA
