ICON Vehicle Dynamics K53076 Features:

The 200 Series Toyota Land Cruiser is a luxurious vehicle packed with “all the bells and whistles”, but underneath all of the sophistication it is still a very capable vehicle that sees heavy use both on and off-road worldwide. While the 200 Series has exceptional ride characteristics in stock form, it is clear that the suspension is in need of a serious upgrade if the vehicle is to serve any measurable amount of time in the dirt. ICON Vehicle Dynamics has addressed this need for a comprehensive suspension solution and is proud to re-introduce several suspension systems that drastically increase the overall ability of the 2008-UP Toyota Land Cruiser.
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.75” Backspace / 25mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 6.00” Backspace / 25mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.625” Backspace / 16mm Offset
• Recommended Aftermarket Tires: 34" x 10.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #35: REMOTE RESERVOIR MOUNTING BRACKETS MAY INTERFERE WITH AFTERMARKET BUMPER MOUNTS / WINDSHIELD WASHER BOTTLES
• APPLICATION NOTE #46: SUSPENSION SYSTEM COMPATIBLE WITH KDSS. FRONT SWAY BAR RELOCATION BRACKETS NOT USED FOR KDSS EQUIPPED VEHICLES. CERTAIN YEARS REQUIRE TRIMMING FOR FRONT RESERVOIR BRACKET FITMENT.
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• APPLICATION NOTE #111: BUMP STOP SPACER KIT AVAILABLE THAT CAN BE INSTALLED TO INCREASE THREADS SHOWING BEYOND MAX RECOMMENDATION.
• Ships in multiple boxes
• Mounting Hardware Included: Yes
• Spring Material: Steel
• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
• Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
• Add-On Part: 191010 - ICON RAPTOR 3.0 COIL WRAP W/LOGO PAIR
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 34" x 10.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.75” Backspace / 25mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 6.00” Backspace / 25mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.625” Backspace / 16mm Offset
• Shocks Included: Yes
• Increased wheel travel and ride quality over stock
• Improved vehicle dynamics and decreased body roll
• Height adjustable coilovers provide 2.5-3.5" of lift height
• ICON engineered dual rate rear coil springs
• Billet Aluminum rear lower links offer on-vehicle pinion angle adjustment
• Vehicle-specific tuned front and rear shocks provide superior damping and control
• Corrosion resistant CAD plated coilover shock bodies with 1" shafts
• 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• CDCV technology allows for quick and easy compression damping adjustment without the need for tools
• Shocks are fully rebuildable and revalveable
• Bolt-on design means no cutting or welding necessary for install

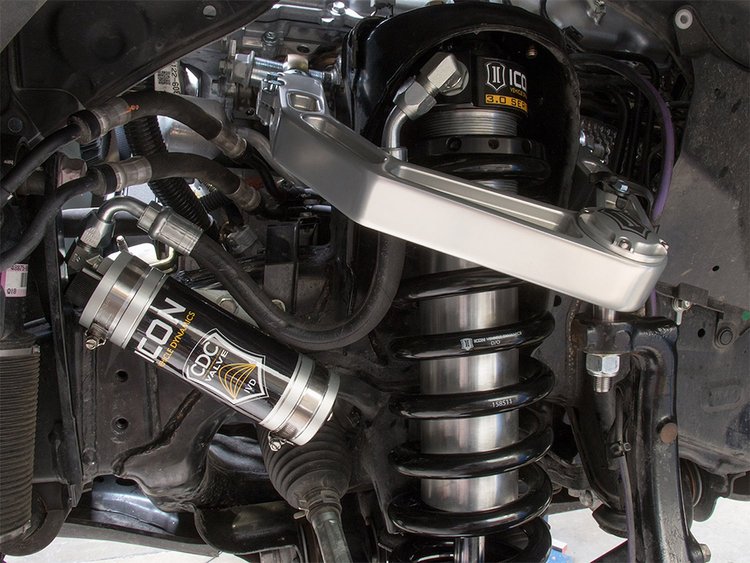

• 2008-UP TOYOTA LAND CRUISER 200 SERIES 2.5-3.5" LIFT STAGE 6 SUSPENSION SYSTEM
