ICON Vehicle Dynamics K53091 Features:

After an in-depth R&D process, ICON engineers have developed a 3” suspension system for the 80 Series that is aimed to improve on-road handling characteristics while also maximizing the Land Cruiser’s off-road potential. This Stage 1 system includes ICON-designed dual rate coil springs, caster correction bushings, sway bar relocation components, all bracketry and hardware required for install, and ICON Vehicle Dynamics 2.0 Aluminum Series shocks that feature a vehicle specific valving for optimized ride quality and balanced damping front to rear. This ICON Stage 1 System is the perfect entry level suspension system for drivers seeking a quality on-road ride with exceptional off-road characteristics as well.
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: 17x8.5" with 4.63” Backspace
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• Spring Color: Black
• Spring Material: Steel
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: 17x8.5" w/ 4.63” Backspace
• Dual Rate Coil Springs: Yes
• Shocks Included: Yes
• 3” lift height
• Approximately 40% increased front wheel travel over stock
• Approximately 35% increased rear wheel travel over stock
• ICON-engineered dual rate coil springs provide exceptional on-road ride quality and outstanding off-road performance
• Vehicle specific tuned 2.0 Aluminum Series front and rear shocks offer superior shock damping and control
• 2.0 aluminum body IFP shocks with 5/8" shaft
• Corrosion resistant anodized aluminum shock body
• 6061 aircraft grade aluminum CNC machined components
• 100% bolt-on design means no drilling, cutting or welding necessary for install

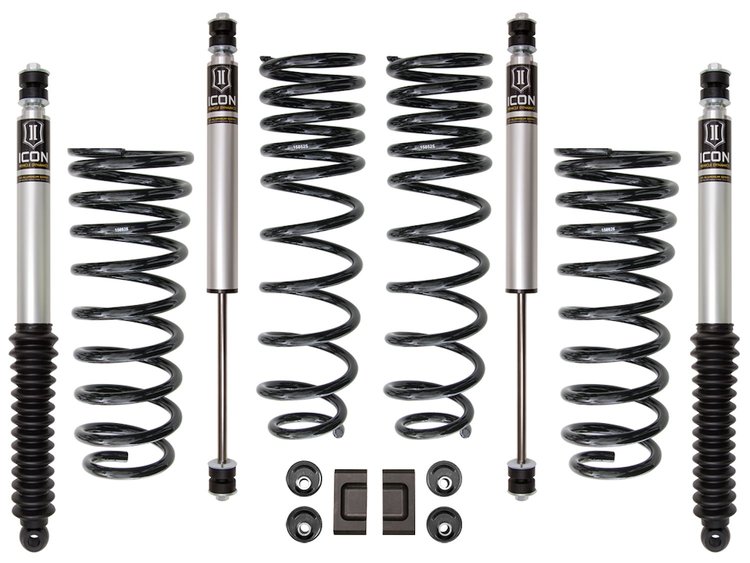

• 1991-1997 TOYOTA LAND CRUISER 80 SERIES 3" LIFT STAGE 1 SUSPENSION SYSTEM
