ICON Vehicle Dynamics K53192 Features:

The ICON Vehicle Dynamics Stage 2 complete suspension system for the 2022-UP Toyota Tundra builds on ICON's 2.5 EXP Shock Kit with the addition of billet front upper control arms, providing proper alignment at any ride height, improved on- and off-road performance as well as front-end lift and leveling for a proper stance and fitment of up to 35" tires. This system features the innovative new 2.5 EXP series coilover shocks and swaybar drop kit for the front of the truck along with our proven 2.0 nitrogen charged monotube shock with internal reservoir for the rear.
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: 17x8.5" w/ 5.75” Backspace / 25mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE.
• APPLICATION NOTE #85: ADVERTISED LIFT HEIGHT RANGES ARE FOR A STOCK EQUIPPED VEHICLE. INCREASING WEIGHT OF VEHICLE DUE TO ACCESSORIES WILL ALTER LIFT RANGE.
• APPLICATION NOTE #142: NOT COMPATIBLE WITH TUNDRAS EQUIPPED WITH LOAD-LEVELING REAR HEIGHT CONTROL AIR SUSPENSION.
• APPLICATION NOTE #143: NOT COMPATIBLE WITH TUNDRAS EQUIPPED WITH ADAPTIVE VARIABLE SUSPENSION (AVS).
• APPLICATION NOTE #144: NOT COMPATIBLE WITH 22-UP TUNDRA TRD PRO.
• APPLICATION NOTE #145: WILL NOT WORK WITH HYBRID EQUIPPED VEHICLES.
• TECH NOTE: 2022 Tundra SR5 equipped with TRD Sport packages will have lift height range of .5-3.5” over stock
• TECH NOTE: Included rear shocks are compatible with 0-1" of rear lift over stock on models equipped with rear coil springs.
• Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
• Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
• Recommended Aftermarket Wheels: 17x8.5" w/ 5.75” Backspace / 25mm Offset
• Shocks Included: Yes
• Vehicle specific design for 2022-UP Toyota Tundra
• 2.5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardware
• Adjustable front ride heights from 0-3” of front lift over stock with the use of snap ring and included billet UCAs
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Included sway bar drop brackets reduce bind in OE sway bar links
• Allows for full wheel travel without overstressing OE components
• 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
• All ICON shock absorbers are fully rebuildable and re-tunable
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install

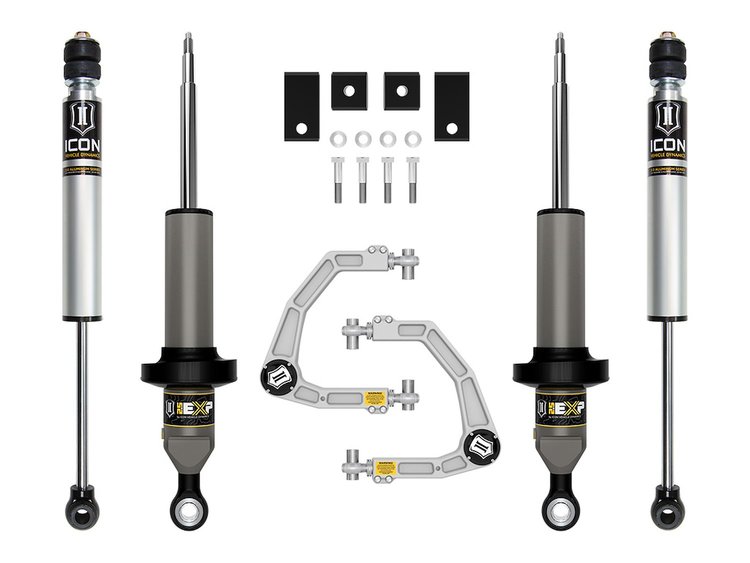

• 2022-UP TOYOTA TUNDRA 0-3" LIFT STAGE 2 SUSPENSION SYSTEM WITH BILLET UPPER CONTROL ARMS
