ICON Vehicle Dynamics K53195T Features:

The ICON Vehicle Dynamics Stage 5 complete suspension system for the 2022-UP Toyota Tundra builds upon the Stage 4 system with the upgrade of the 2.0 Aluminum Series rear shocks to remote reservoir versions. This system offers improved on- and off-road performance, with greater rear shock heat dissipation, as well as improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35" tires. To compliment the 2.0 remote reservoir rear shocks, a 2.5 Series internal reservoir front coilover shock and tubular front upper control arm combo is included along with a front sway bar drop kit.
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: 17x8.5" w/ 5.75” Backspace / 25mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE.
• APPLICATION NOTE #85: ADVERTISED LIFT HEIGHT RANGES ARE FOR A STOCK EQUIPPED VEHICLE. INCREASING WEIGHT OF VEHICLE DUE TO ACCESSORIES WILL ALTER LIFT RANGE.
• APPLICATION NOTE #142: NOT COMPATIBLE WITH TUNDRAS EQUIPPED WITH LOAD-LEVELING REAR HEIGHT CONTROL AIR SUSPENSION.
• APPLICATION NOTE #143: NOT COMPATIBLE WITH TUNDRAS EQUIPPED WITH ADAPTIVE VARIABLE SUSPENSION (AVS).
• APPLICATION NOTE #144: NOT COMPATIBLE WITH 22-UP TUNDRA TRD PRO.
• APPLICATION NOTE #145: WILL NOT WORK WITH HYBRID EQUIPPED VEHICLES.
• TECH NOTE: Included rear shocks are compatible with 0-1" of rear lift over stock on models equipped with rear coil springs.
• TECH NOTE: 2022 Tundra SR5 equipped with TRD Sport packages will have lift height range of 2.5-4” over stock
• Spring Color: Black
• Spring Material: Steel
• Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
• Recommended Aftermarket Wheels: 17x8.5" w/ 5.75” Backspace / 25mm Offset
• Front Spring Rate Type: Linear
• Shocks Included: Yes
• Vehicle specific design for 2022-UP Toyota Tundra
• 2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control
• Adjustable front ride heights from 2-3.5” of front lift over stock when used with included tubular UCAs
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Included sway bar drop brackets reduce bind in OE sway bar links
• Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
• 2.0 Aluminum Series rear remote reservoir shocks provide balanced tune with coilovers and increased performance
• All ICON shock absorbers are fully rebuildable and re-tunable
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install

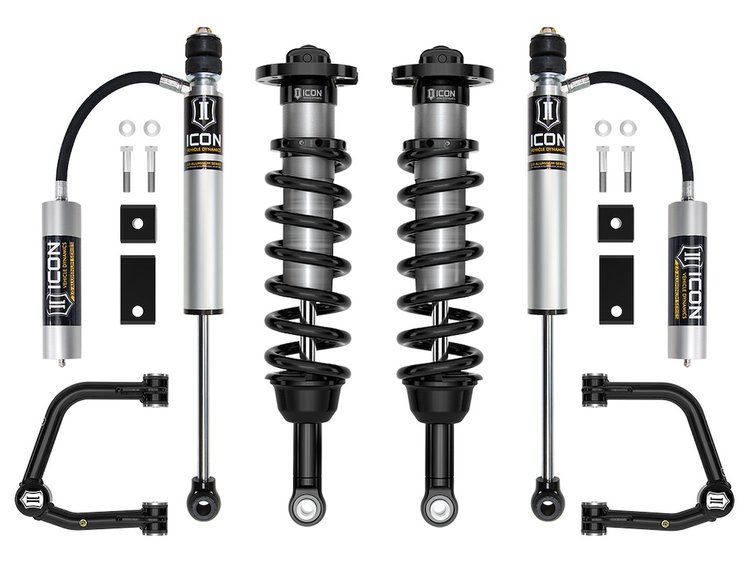

• 2022-UP TOYOTA TUNDRA 2-3.5" LIFT STAGE 5 SUSPENSION SYSTEM WITH TUBULAR UPPER CONTROL ARMS
