ICON Vehicle Dynamics K53199T Features:

The ICON Vehicle Dynamics Stage 9 complete suspension system for the 2022-UP Toyota Tundra upgrades front and rear shock absorbers to include Compression Damping Control Valves (CDCV) for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. This system offers improved on- and off-road performance with adjustable compression damping, as well as improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35" tires. To compliment the CDCV equipped 2.5 Series coilovers and rear shocks, a tubular front upper control arm kit is included along with a front sway bar drop kit.
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: 17x8.5" w/ 5.75” Backspace / 25mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE.
• APPLICATION NOTE #85: ADVERTISED LIFT HEIGHT RANGES ARE FOR A STOCK EQUIPPED VEHICLE. INCREASING WEIGHT OF VEHICLE DUE TO ACCESSORIES WILL ALTER LIFT RANGE.
• APPLICATION NOTE #142: NOT COMPATIBLE WITH TUNDRAS EQUIPPED WITH LOAD-LEVELING REAR HEIGHT CONTROL AIR SUSPENSION.
• APPLICATION NOTE #143: NOT COMPATIBLE WITH TUNDRAS EQUIPPED WITH ADAPTIVE VARIABLE SUSPENSION (AVS).
• APPLICATION NOTE #144: NOT COMPATIBLE WITH 22-UP TUNDRA TRD PRO.
• APPLICATION NOTE #145: WILL NOT WORK WITH HYBRID EQUIPPED VEHICLES.
• TECH NOTE: Included rear shocks are compatible with 0-1" of rear lift over stock on models equipped with rear coil springs.
• TECH NOTE: 2022 Tundra SR5 equipped with TRD Sport packages will have lift height range of 2.5-4” over stock
• Spring Color: Black
• Spring Material: Steel
• Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
• Recommended Aftermarket Wheels: 17x8.5" w/ 5.75” Backspace / 25mm Offset
• Front Spring Rate Type: Linear
• Shocks Included: Yes
• Vehicle specific design for 2022-UP Toyota Tundra
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Adjustable front ride heights from 2-3.5” of front lift over stock when used with included tubular UCAs
• All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Included sway bar drop brackets reduce bind in OE sway bar links
• Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
• 2.5 Aluminum Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers
• All ICON shock absorbers are fully rebuildable and re-tunable

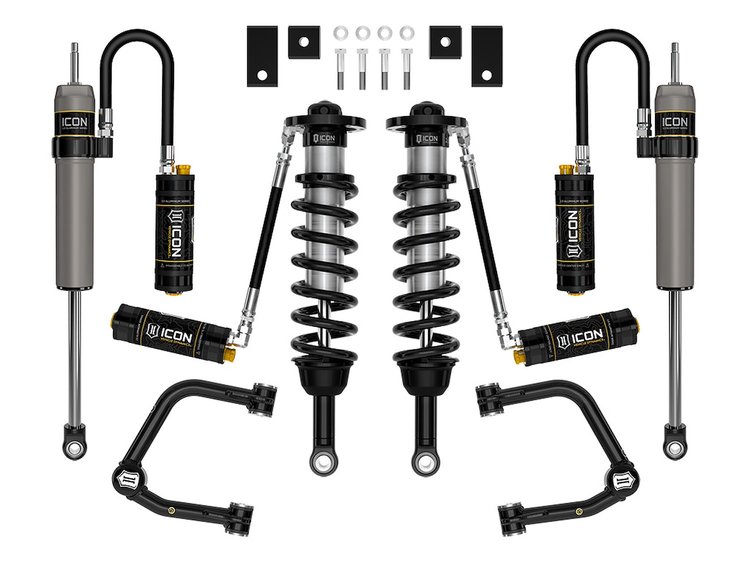

• 2022-UP TOYOTA TUNDRA 2-3.5" LIFT STAGE 9 SUSPENSION SYSTEM WITH TUBULAR UPPER CONTROL ARMS
